10 ft Open Mesh Floor Bunded Storage Container – 300mm Bund, Corten Steel, 12 Vents

This 10 ft open mesh floor bunded storage container is constructed from Corten steel. Corten steel is a weathering steel that forms a protective rust layer when exposed to the elements, reducing long-term corrosion.

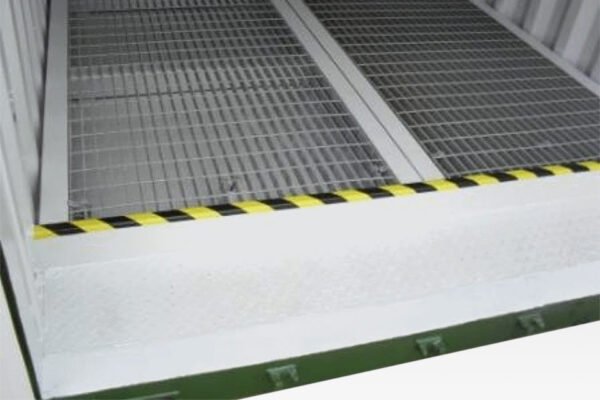

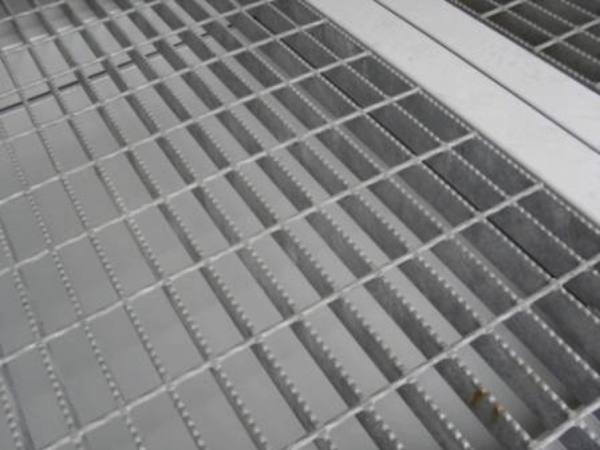

The container includes a 300mm raised bund for spill containment. The floor features a galvanised open mesh design with a loading capacity of 7.5 kN/m². A 3mm Durbar floor is welded into the container beneath the mesh. The floor type is steel bunded floor.

Exterior hinged double doors are located at the end of the container. The door includes two locking bars. A lockbox is factory fitted to the door.

Forklift pockets are included for handling and relocation. Twelve vents are installed for airflow.

Technical Specifications

External Dimensions:

• Length: 2.99 m (approximately 9.8 ft)

• Width: 2.44 m (approximately 8 ft)

• Height: 2.59 m (approximately 8 ft 6 in)

Internal Dimensions:

• Length: 2.84 m

• Width: 2.35 m

• Height: 2.39 m

Door:

• Width: 2.34 m

• Height: 2.28 m

Weight:

• Tare weight: 1,620 kg (approximately 3,571 lbs)

Construction:

• Material: Corten steel

• Bund height: 300 mm raised bund

• Floor type: Steel bunded floor with galvanised open mesh

• Mesh loading capacity: 7.5 kN/m²

• Base floor: 3mm Durbar floor welded into container

• Door type: Exterior hinged double doors

• Locking bars: 2

• Lockbox: Factory fitted

• Forklift pockets: Yes

• Vents: 12

Compatibility and Intended Use

This open mesh floor bunded storage container is intended for ground-level placement on flat, load-bearing surfaces. Typical applications include:

• Chemical storage

• Hazardous material storage

• Industrial worksites

• Manufacturing facilities

• Laboratory and research facilities

The raised bund provides spill containment for hazardous materials. The open mesh floor allows for drainage and airflow.

Package Includes

• 10 ft open mesh floor bunded storage container

• Corten steel construction

• 300mm raised bund

• Galvanised open mesh floor (7.5 kN/m² loading capacity)

• 3mm Durbar welded base floor

• Exterior hinged double doors

• Two locking bars on door

• Factory fitted lockbox

• Forklift pockets

• 12 vents
