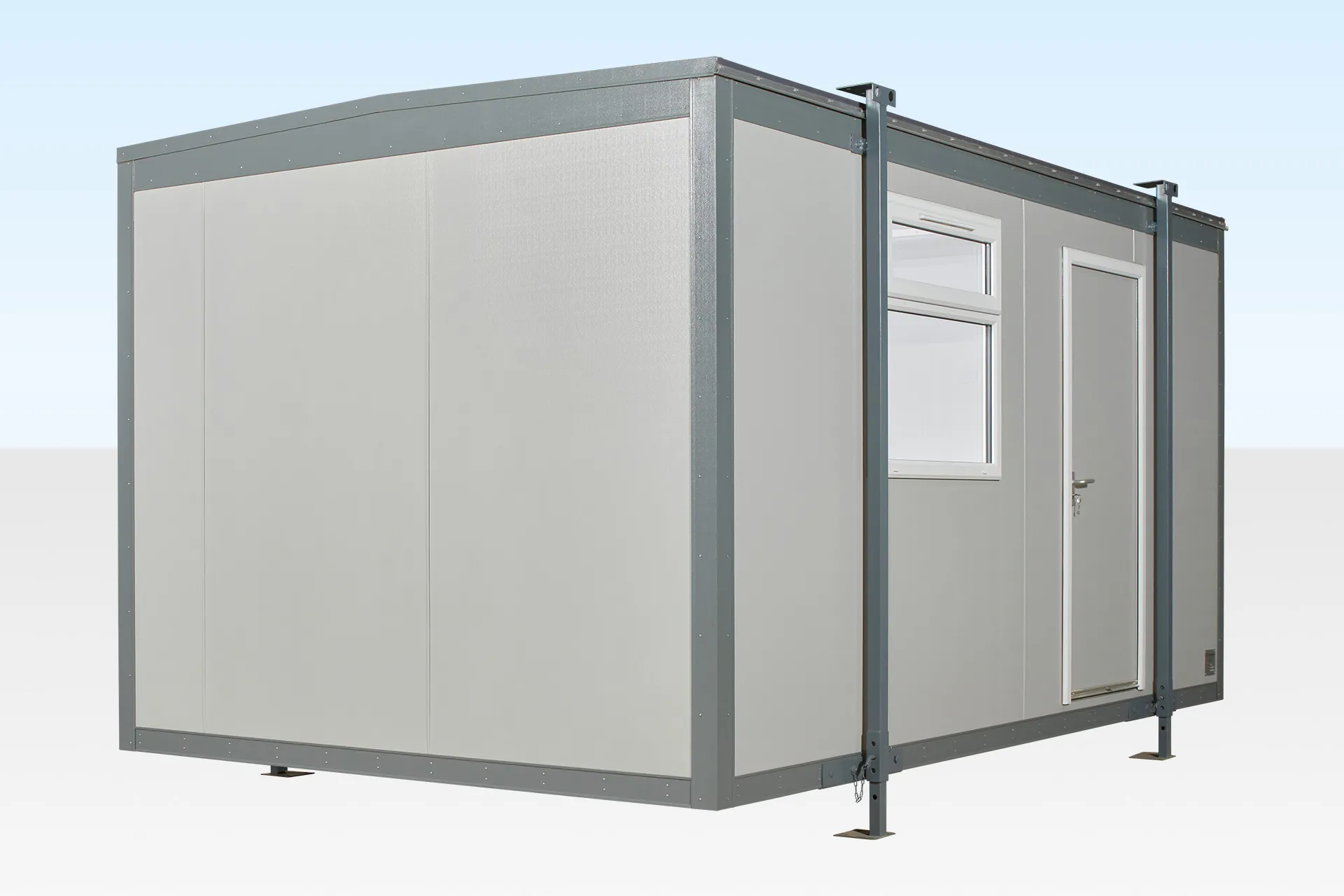

This 16 ft x 10 ft Jackleg cabin is a portable building constructed for ground-level placement on job sites, event locations, or other temporary use areas. The cabin includes jackleg supports that allow leveling on uneven ground.

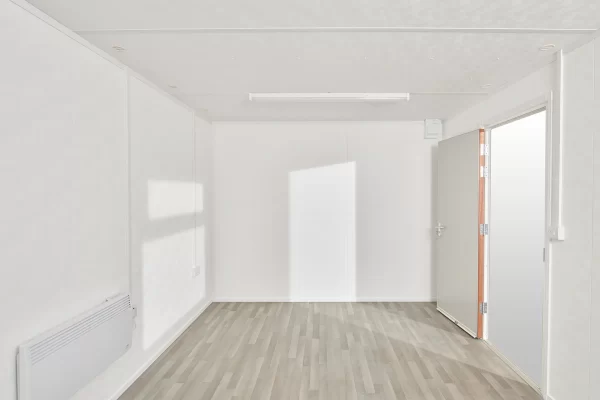

The interior is configured as an open plan layout. This design provides a single uninterrupted space that can be used for multiple purposes. A fitted canteen option is available as an alternative configuration.
The exterior is finished in Goosewing Grey. The exterior material is designed for durability in outdoor conditions.
The cabin includes one UPVc double glazed window. Double glazing consists of two glass layers with an air gap between them, which reduces heat transfer and exterior noise.
The electrical system includes two LED strip lights for interior illumination, two twin 13A sockets for electrical devices, and one electric panel heater with a timer. The electrical requirements are 230V with a 63 Amp RCD (Residual Current Device) for circuit protection.
The internal wall covering is vinyl faced white plasterboard. The internal floor covering is 2mm vinyl in a grey wood plank effect. The flooring substrate is OSB3 board. OSB3 is a moisture-resistant oriented strand board suitable for humid conditions.
Carpet flooring is available as an optional upgrade.
Technical Specifications
External Dimensions:
- Length: 4.88 m (approximately 16 ft)
- Width (excluding jacks): 3.05 m (approximately 10 ft)
- Width (including jacks): 3.17 m
- Height: 2.63 m
Internal Dimensions:
- Length: 4.76 m
- Width: 2.93 m
- Height: 2.23 m
Door:
- Width: 0.84 m
- Height: 1.98 m
Window:
- Type: UPVc double glazed
- Quantity: 1
Lighting:
- Type: LED strip lights
- Quantity: 2
Heating:
- Type: Electric panel heater with timer
- Quantity: 1
Electrical Outlets:
- Type: Twin 13A socket
- Quantity: 2
Flooring:
- Substrate: OSB3 board (18 mm thickness, TG2LE)
- Surface covering: 2mm vinyl in grey wood plank effect
- Optional covering: Carpet
Internal Wall Covering:
- Material: Vinyl faced white plasterboard (12.5 mm thickness, 2400 x 1200 mm panels)
Electrical Requirements:
- Voltage: 230V
- Protection: 63 Amp RCD
Compatibility and Intended Use
This Jackleg cabin is intended for ground-level placement on prepared surfaces such as compacted earth, gravel, or concrete pads. The jackleg supports allow height adjustment for leveling on uneven terrain. Typical applications include:
- Construction site office
- Temporary event space
- Portable accommodation for workers
- Security checkpoint or break room
- Canteen or lunch area (with optional fitted canteen configuration)
The cabin requires connection to an external power source meeting the 230V 63 Amp RCD specification. The unit is not designed for transport on public roads without appropriate permitting and equipment.
Package Includes
- 16 ft x 10 ft Jackleg cabin
- Open plan interior layout
- Goosewing Grey exterior finish
- Jackleg supports (4)
- One UPVc double glazed window
- Two LED strip lights
- Two twin 13A electrical sockets
- One electric panel heater with timer
- Vinyl faced white plasterboard internal walls
- OSB3 flooring substrate
- 2mm vinyl floor covering (grey wood plank effect)
