20 ft High Cube Container – IBC Storage, Corten Steel, CSC Plated

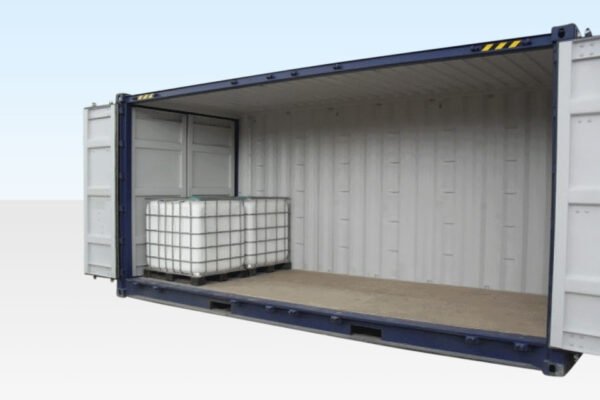

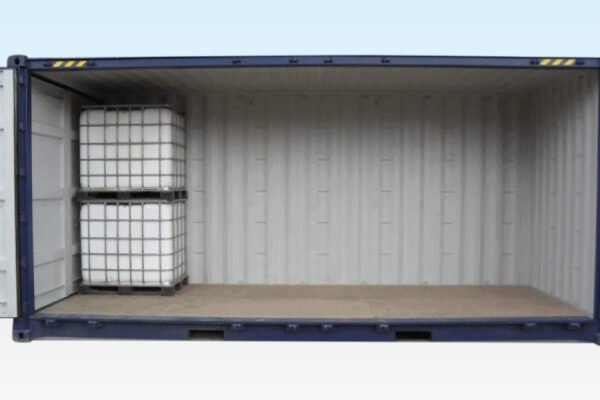

This 20 ft shipping container is configured as a high cube unit, providing additional interior height of 9 ft 6 in compared to standard containers. The extra height makes it suitable for IBC tank storage, accommodating 16 x 1000 litre IBCs inside.

The container is constructed from Corten steel. Corten steel is a weathering steel that forms a protective rust layer when exposed to the elements, reducing long-term corrosion.

The container includes CSC plating with a maximum gross weight of 30 tons.

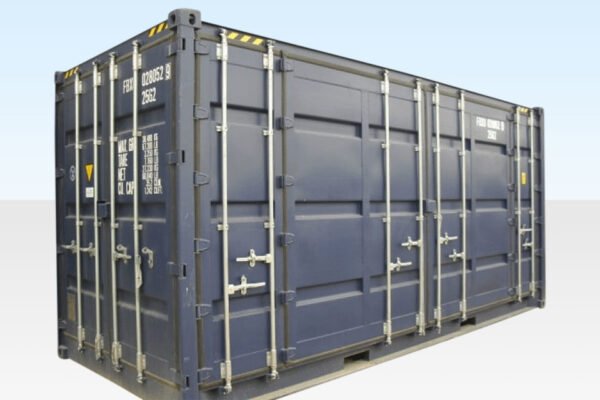

Exterior hinged double doors are located at one 8 ft end and on one 20 ft side. Each door has two locking bars. Lockboxes are factory fitted to the doors.

Two forklift pockets are located on each side of the container for handling and relocation.

The flooring is 28mm marine plywood installed on steel cross members. Marine plywood is manufactured with water-resistant adhesives and resists delamination in humid conditions.

Four vents are installed for airflow.

Technical Specifications

External Dimensions:

• Length: 6.06 m (approximately 20 ft)

• Width: 2.44 m (approximately 8 ft)

• Height: 2.90 m (approximately 9 ft 6 in – High Cube)

Internal Dimensions:

• Length: 5.95 m

• Width: 2.35 m

• Height: 2.70 m

Doors:

• End door width: 2.34 m

• Side door width: 5.82 m

• Door height: 2.59 m

Weight:

• Tare weight: 3,380 kg (approximately 7,452 lbs)

Construction:

• Material: Corten steel

• Container type: High cube with side access

• CSC plate: Yes, max gross weight 30 tons

• IBC capacity: 16 x 1000 litre IBCs

• Locking bars: 2 per door

• Lockboxes: Factory fitted

• Forklift pockets: 2 per side

• Flooring: 28mm marine plywood on steel cross members

• Vents: 4

Compatibility and Intended Use

This high cube shipping container is intended for ground-level placement on flat, load-bearing surfaces or for transport via flatbed truck. Typical applications include:

• IBC tank storage

• Storage of products and materials

• Commercial and industrial storage

• Transport of cargo

The high cube configuration provides additional height for taller items. The side access doors allow loading and unloading from the side.

Package Includes

• 20 ft high cube shipping container

• Corten steel construction

• CSC plate

• Exterior hinged double doors (end and side)

• Two locking bars per door

• Factory fitted lockboxes

• Two forklift pockets per side

• 28mm marine plywood floor on steel cross members

• Four vents
