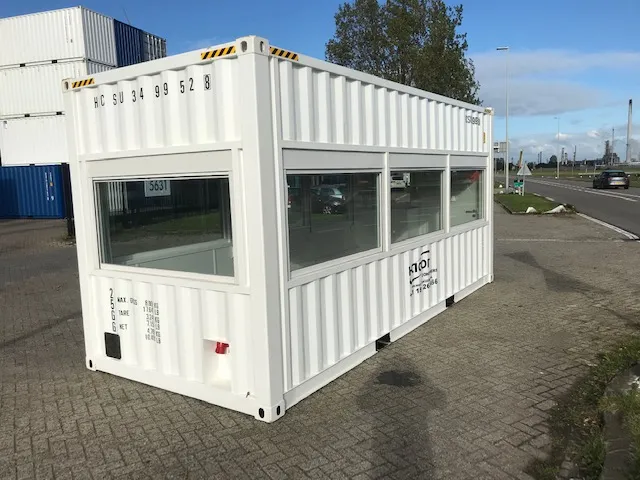

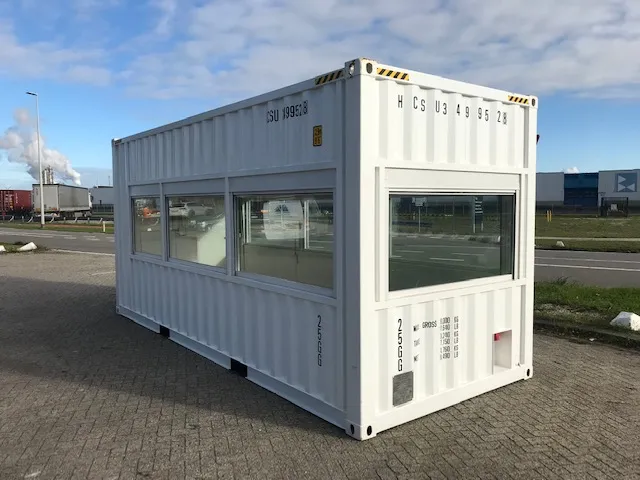

This 20 ft High Cube shipping container has been modified for use as an observation or workspace. The High Cube configuration provides additional interior height compared to standard containers.

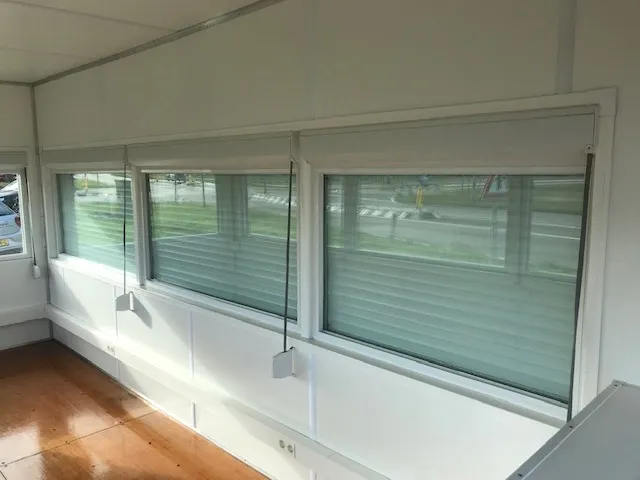

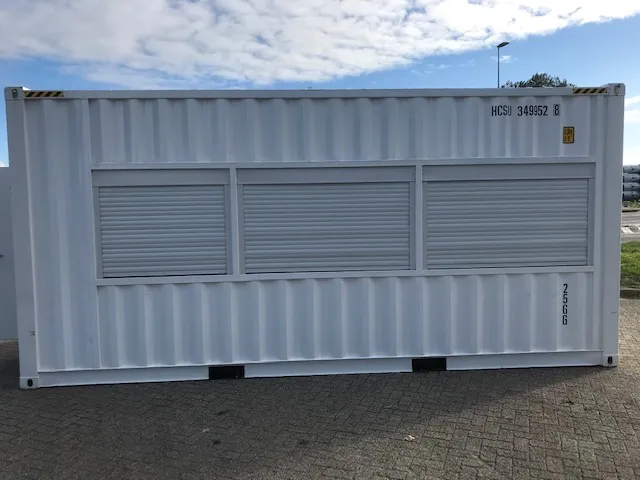

The container features multiple double glazed windows. The glass specification is 5+9A+5mm double safety glass, consisting of two 5mm glass layers with a 9mm air gap. Window shutters are included for privacy and light control.
The window configuration is as follows:
- Three fixed windows on each long side (dimensions: W1.787 x H1.055 mm each)
- One fixed window in the front (dimensions: W1.894 x H1.055 mm)
- One tilt window in the rear (dimensions: W885 x H1.000 mm)

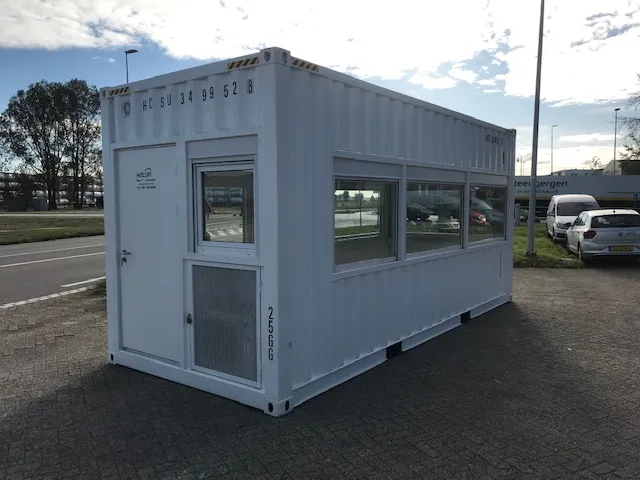

A wicket door is installed for access.
The container is insulated with 60 mm rock wool. Rock wool is a mineral fiber insulation material that reduces heat transfer between the interior and exterior environments.
The electrical installation includes a 400V 32A 5-pin external connection with loop-through capability. The fusebox contains a 400V main switch and three 230V earth leakage circuit breakers. The interior electrical components include two fluorescent lights, five double wall sockets mounted in a cable tray, and a light switch.
The climate control system consists of a 2.5kW split-level air conditioning unit. The exterior unit includes a protective offshore coating for resistance to marine environments.

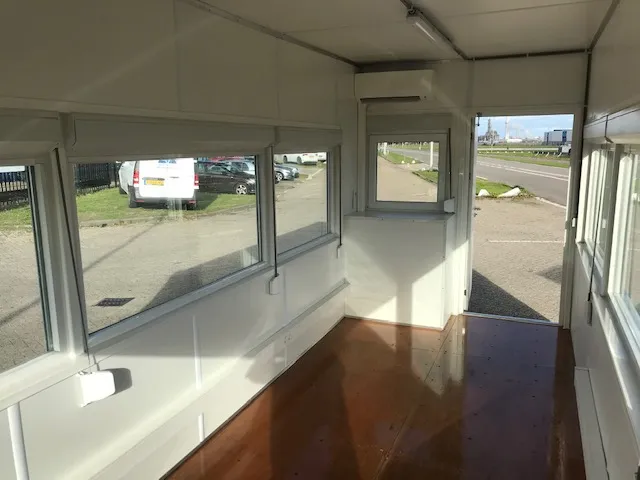

The interior furnishings are constructed from 9 mm chipboard. The interior panel finish is 0.5 mm galvanized steel, which resists corrosion.
The container is CSC certified for shipping compliance. The unit is stackable, allowing vertical stacking for storage or transport of multiple units. The exterior can be painted in any RAL color.
Technical Specifications
| Feature | Measurement |
|---|---|
| External length | 6.058 m (approximately 20 ft) |
| External width | 2.438 m (approximately 8 ft) |
| External height | 2.896 m (approximately 9 ft 6 in – High Cube) |
| Tare weight (empty) | 3,240 kg |
| Maximum payload | 4,760 kg |
| Insulation type | Rock wool (60 mm) |
| Glass specification | 5+9A+5mm double safety glass |
| Window shutters | Included |
| Wicket door | Included |
| Electrical connection | 400V 32A 5-pin with loop-through |
| Fusebox components | 400V main switch, 3 x 230V earth leakage circuit breakers |
| Lighting | 2 fluorescent lights |
| Electrical sockets | 5 double wall sockets |
| Air conditioning | 2.5kW split-level with exterior unit (offshore coating) |
| Interior furnishings | 9 mm chipboard |
| Interior panel finish | 0.5 mm galvanized steel |
| Certification | CSC certified |
| Stackable | Yes |
| Exterior color | Any RAL color available (custom) |
Window Configuration Summary
| Location | Type | Dimensions (W x H) |
|---|---|---|
| Each long side (3 per side) | Fixed | 1.787 m x 1.055 m |
| Front | Fixed | 1.894 m x 1.055 m |
| Rear | Tilt | 0.885 m x 1.000 m |
Compatibility and Intended Use
This modified shipping container is intended for ground-level placement on flat, load-bearing surfaces or for transport via standard shipping methods. The CSC certification allows international shipping. Typical applications include:
- Site office or supervision area
- Porter lodge or security checkpoint
- Observation post for events or facilities
- Remote workspace
- Temporary or permanent accommodation for personnel
The High Cube configuration provides additional interior height for standing comfort. The insulation and air conditioning allow the container to be used in various seasonal conditions. The electrical system requires connection to an external power source meeting the 400V 32A 5-pin specification. The loop-through capability allows multiple containers to be connected in series.
Package Includes
- 20 ft High Cube fixed glazing observation container
- Double glazed windows with safety glass (as specified)
- Window shutters
- Rock wool insulation (60 mm)
- Wicket door
- Electrical system with 400V 32A 5-pin connection
- Fusebox with main switch and earth leakage circuit breakers
- 2 fluorescent lights
- 5 double wall sockets
- Light switch
- 2.5kW split-level air conditioning unit with exterior unit (offshore coating)
- 9 mm chipboard interior furnishings
- 0.5 mm galvanized steel interior panel finish
- CSC certification
- Stackable frame design
- Exterior finish in specified RAL color
