This 20 ft open mesh floor bunded storage container is constructed from Corten steel. Corten steel is a weathering steel that forms a protective rust layer when exposed to the elements, reducing long-term corrosion.

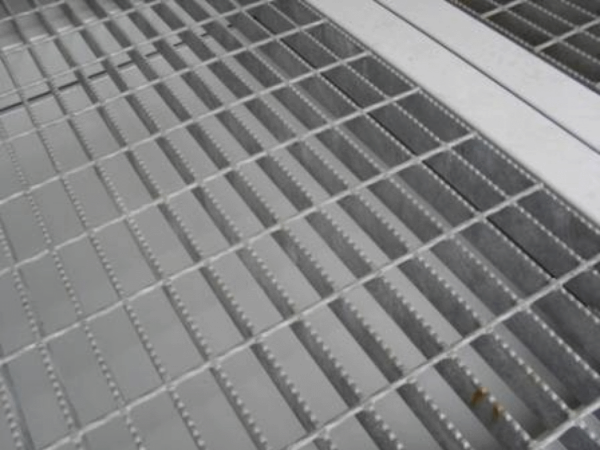

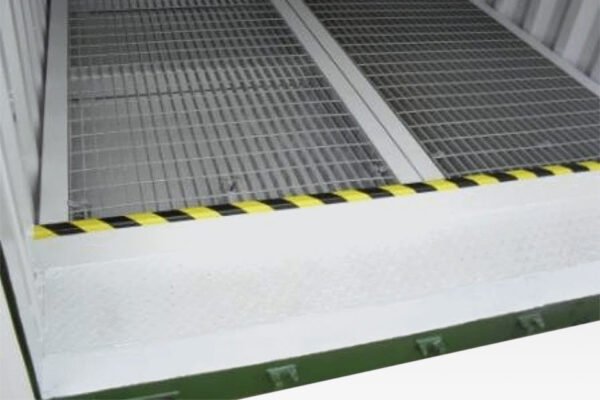

The container includes an open mesh floor design. The galvanised mesh floor has a loading capacity of 7.5 kN/m². The floor type is steel bunded floor.
Exterior hinged double doors are located at the end of the container. Each door has two locking bars. A lockbox is factory fitted to the door.
Forklift pockets are included for handling and relocation. Twenty-four vents are installed for airflow.
Technical Specifications
External Dimensions:
- Length: 6.06 m (approximately 20 ft)
- Width: 2.44 m (approximately 8 ft)
- Height: 2.59 m (approximately 8 ft 6 in)
Internal Dimensions:
- Length: 5.84 m
- Width: 2.35 m
- Height: 2.39 m
Door:
- Width: 2.34 m
- Height: 2.28 m
Weight:
- Tare weight: 2,820 kg (approximately 6,217 lbs)
Construction:
- Material: Corten steel
- Container type: Open mesh floor bunded
- Door type: Exterior hinged double doors
- Locking bars: 2 per door
- Lockbox: Factory fitted
- Forklift pockets: Yes
- Vents: 24
- Floor: Galvanised mesh (loading capacity: 7.5 kN/m²)
- Floor type: Steel bunded floor
Compatibility and Intended Use
This open mesh floor bunded container is intended for ground-level placement on flat, load-bearing surfaces. Typical applications include:
- Chemical storage
- Hazardous material storage
- Industrial worksites
- Manufacturing facilities
- Laboratory and research facilities
The bunded floor provides spill containment for hazardous materials. The open mesh floor allows for drainage and airflow.
Package Includes
- 20 ft open mesh floor bunded container
- Corten steel construction
- Exterior hinged double doors
- Two locking bars per door
- Factory fitted lockbox
- Forklift pockets
- 24 vents
- Galvanised mesh floor (7.5 kN/m² loading capacity)
- Steel bunded floor
