20 ft Tunnel Container – Double End Doors, Corten Steel, CSC Plated

$3,100.00

The 20 ft tunnel container features exterior hinged double doors at each end, allowing access for loading and unloading by hand or forklift. The container is constructed from Corten steel and includes CSC plating, two locking bars on each door, a factory fitted lockbox on each end, two forklift pockets on each side, a 28mm marine plywood floor on steel cross members, and four vents.

Key Features

  • Double end doors (exterior hinged at each end)

  • Corten steel construction

  • CSC plated (max gross weight: 30 tons)

  • Two locking bars on each door

  • Factory fitted lockbox on each end

  • Two forklift pockets on each side

  • 28mm marine plywood floor on steel cross members

  • Four vents

Guaranteed Safe Checkout

20 ft Tunnel Container – Double End Doors, Corten Steel, CSC Plated
20 ft Tunnel Container – Double End Doors, Corten Steel, CSC Plated
$3,100.00

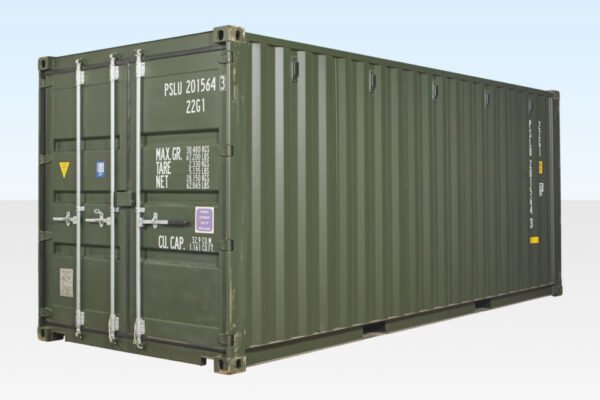

This 20 ft tunnel container is constructed from Corten steel. Corten steel is a weathering steel that forms a protective rust layer when exposed to the elements, reducing long-term corrosion.

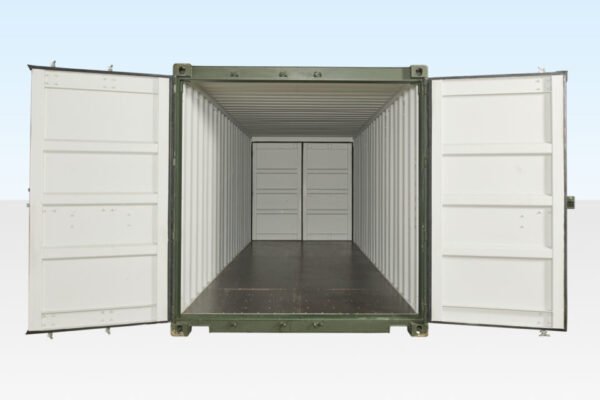

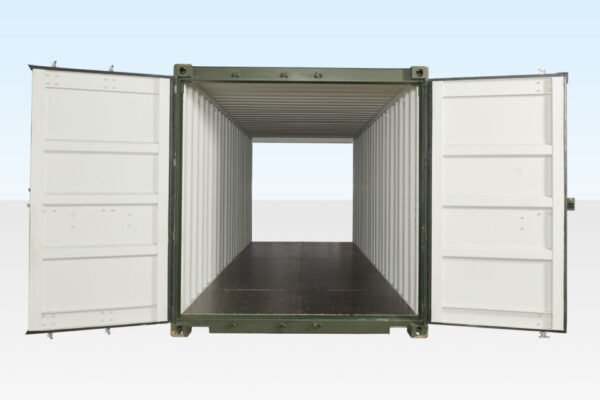

The container features exterior hinged double doors at each end, allowing access from both ends. This design is suitable for loading and unloading by hand or forklift.

The container includes CSC plating with a maximum gross weight of 30 tons.

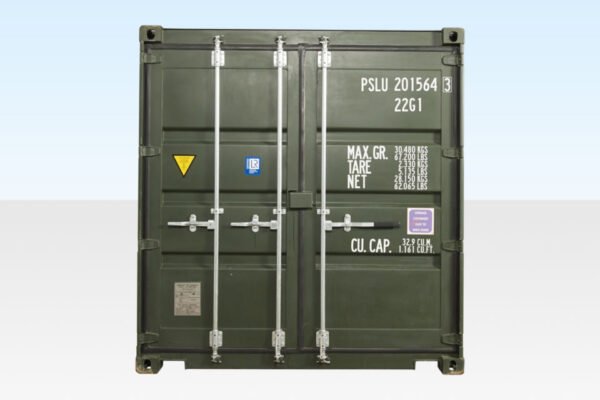

Each door has two locking bars. A lockbox is factory fitted on each end.

Two forklift pockets are located on each side of the container for handling and relocation.

The flooring is 28mm marine plywood installed on steel cross members. Marine plywood is manufactured with water-resistant adhesives and resists delamination in humid conditions.

Four vents are installed for airflow.

These tunnel containers are sometimes used by self storage companies who divide the container into two 10 ft stores.

Technical Specifications

External Dimensions:

  • Length: 6.06 m (approximately 20 ft)

  • Width: 2.44 m (approximately 8 ft)

  • Height: 2.59 m (approximately 8 ft 6 in)

Internal Dimensions:

  • Length: 5.84 m

  • Width: 2.35 m

  • Height: 2.39 m

Door:

  • Width: 2.34 m

  • Height: 2.28 m (each end)

Weight:

  • Tare weight: 2,450 kg (approximately 5,401 lbs)

Construction:

  • Material: Corten steel

  • Container type: Tunnel container (double end doors)

  • CSC plate: Yes, max gross weight 30 tons

  • Locking bars: 2 per door

  • Lockbox: Factory fitted on each end

  • Forklift pockets: 2 per side

  • Flooring: 28mm marine plywood on steel cross members

  • Vents: 4

Compatibility and Intended Use

This tunnel container is intended for ground-level placement on flat, load-bearing surfaces or for transport via flatbed truck. Typical applications include:

  • Storage of smaller items and palletised goods

  • Self storage (can be divided into two 10 ft stores)

  • Commercial and industrial storage

  • Transport of cargo

Package Includes

  • 20 ft tunnel container (double end doors)

  • Corten steel construction

  • CSC plate

  • Two locking bars per door

  • Factory fitted lockbox on each end

  • Two forklift pockets per side

  • 28mm marine plywood floor on steel cross members

  • Four vents
