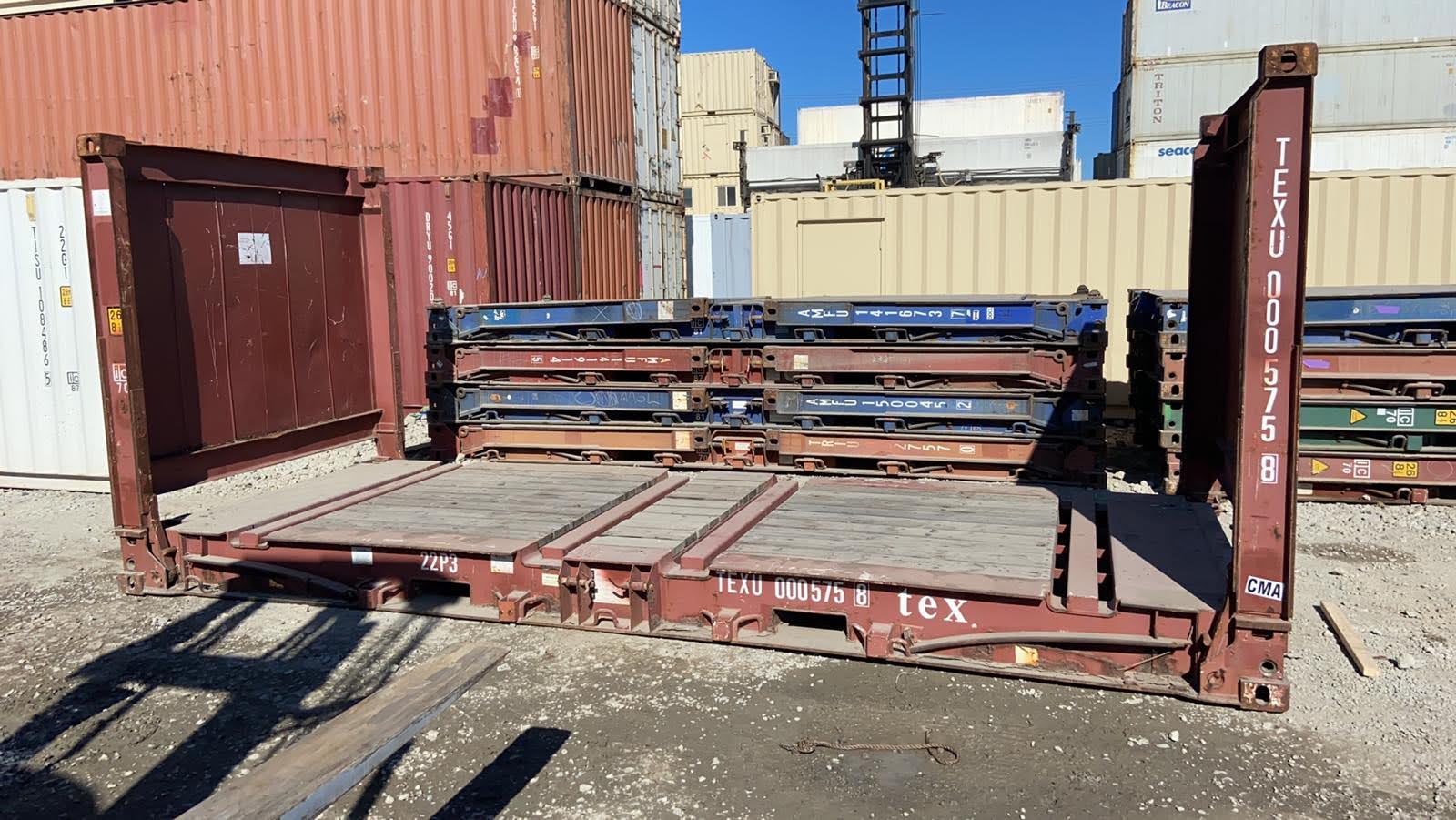

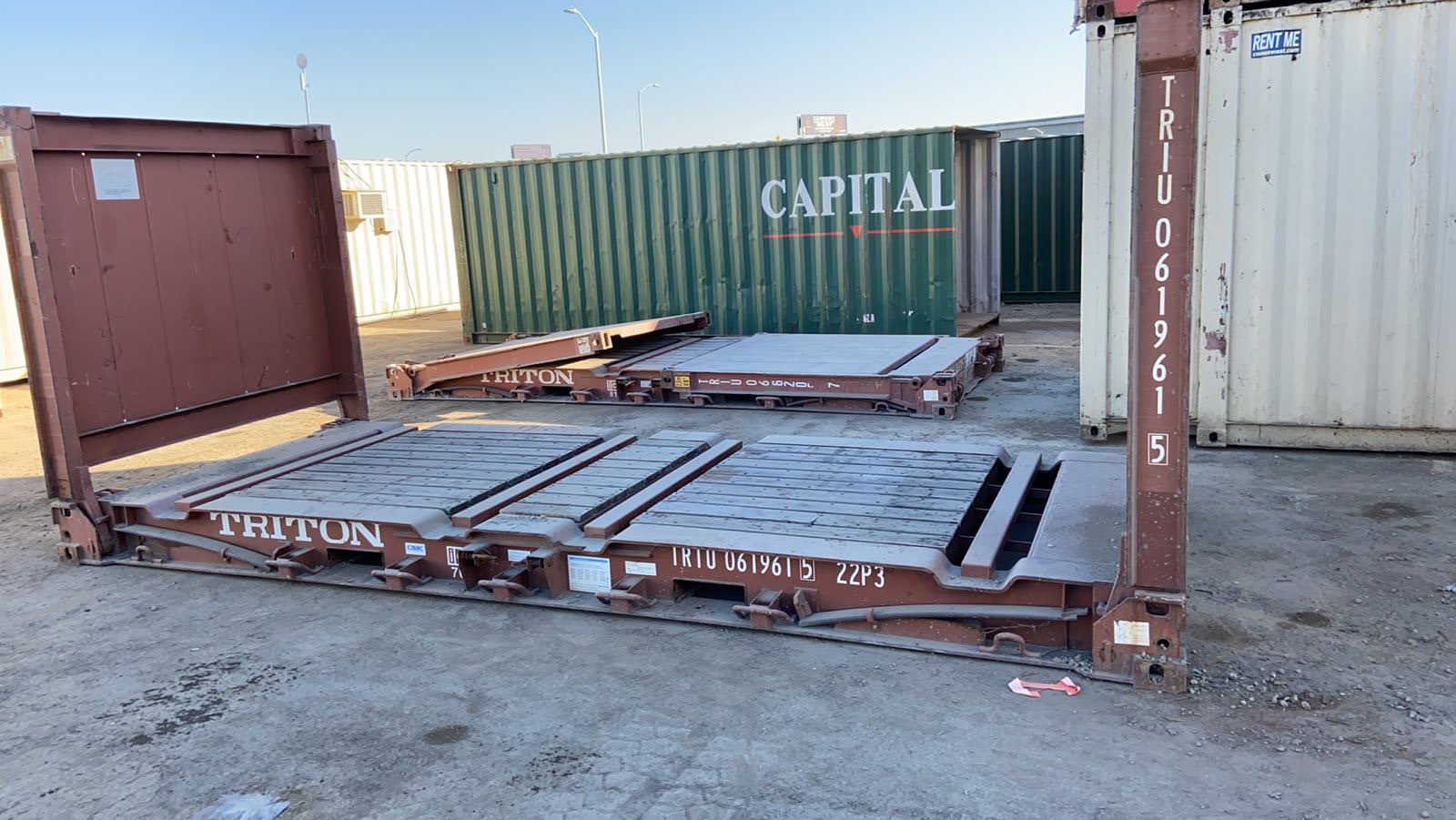

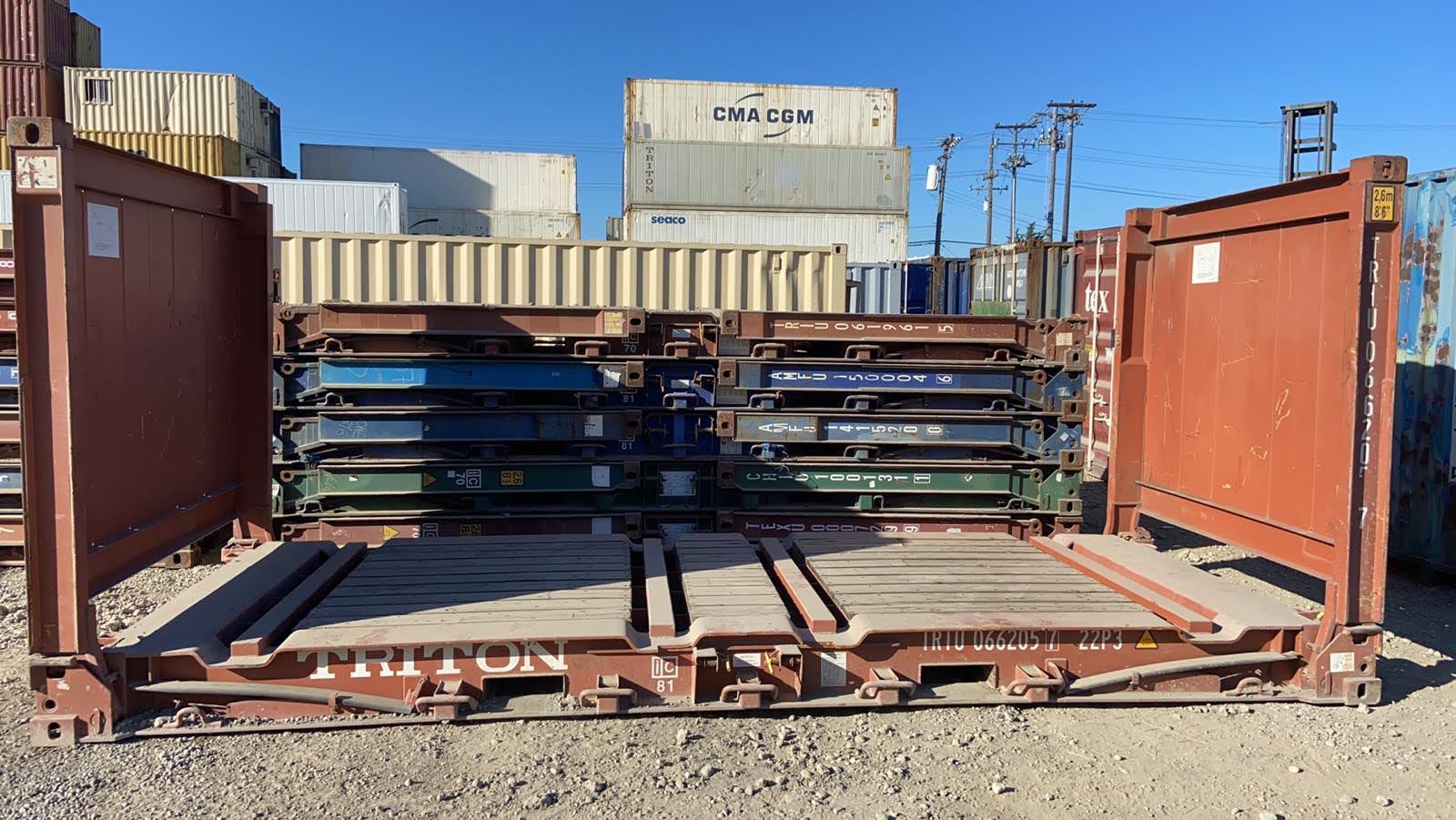

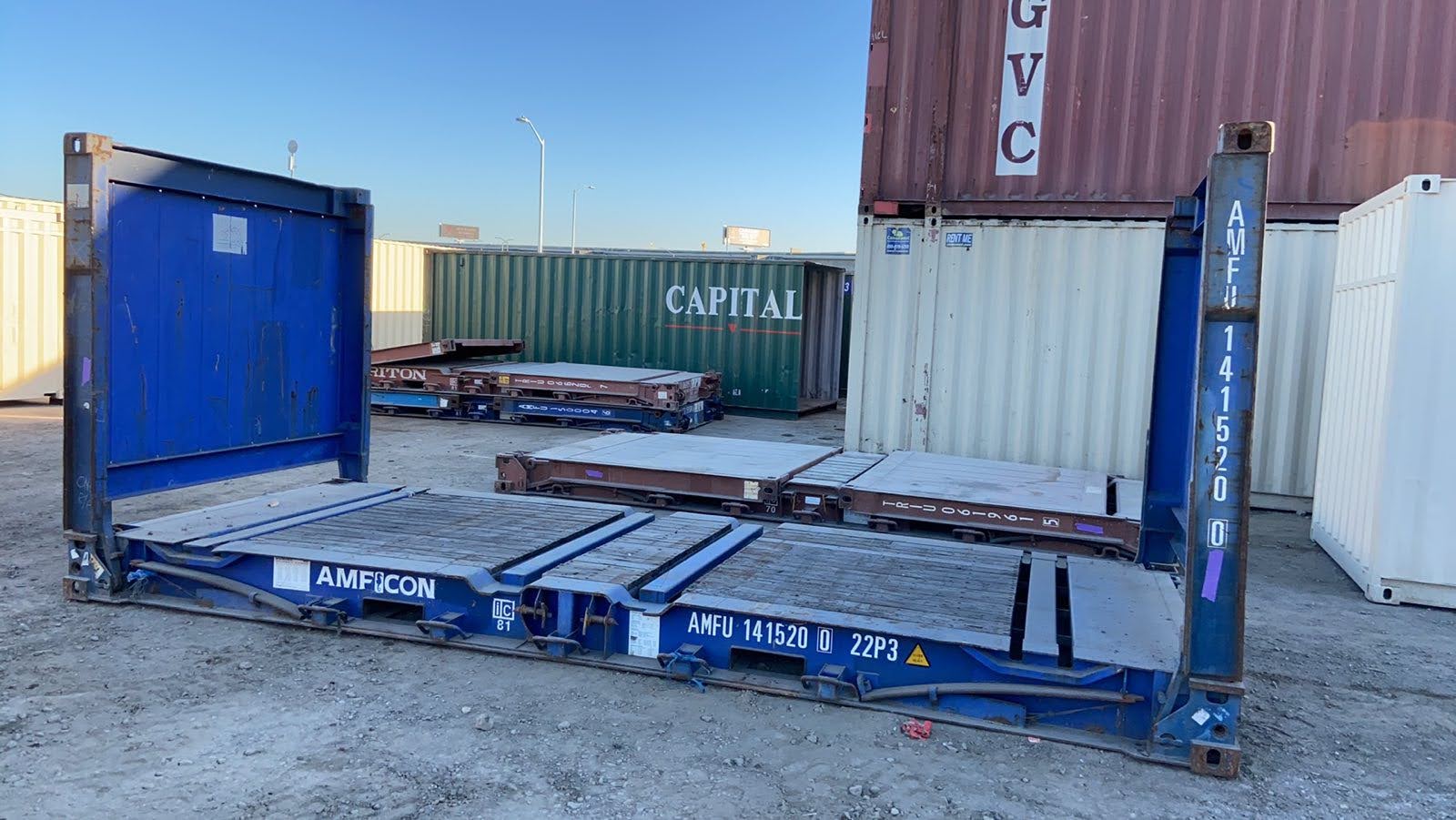

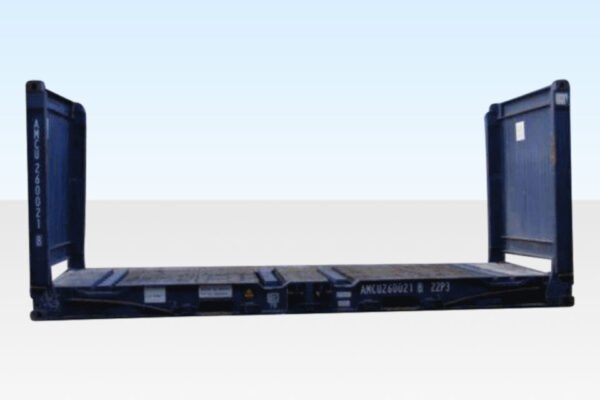

This 20 ft flat rack container is designed for cargo that cannot be loaded into a conventional enclosed container. The unit has no side walls, allowing oversized or heavy loads to be placed from the sides.

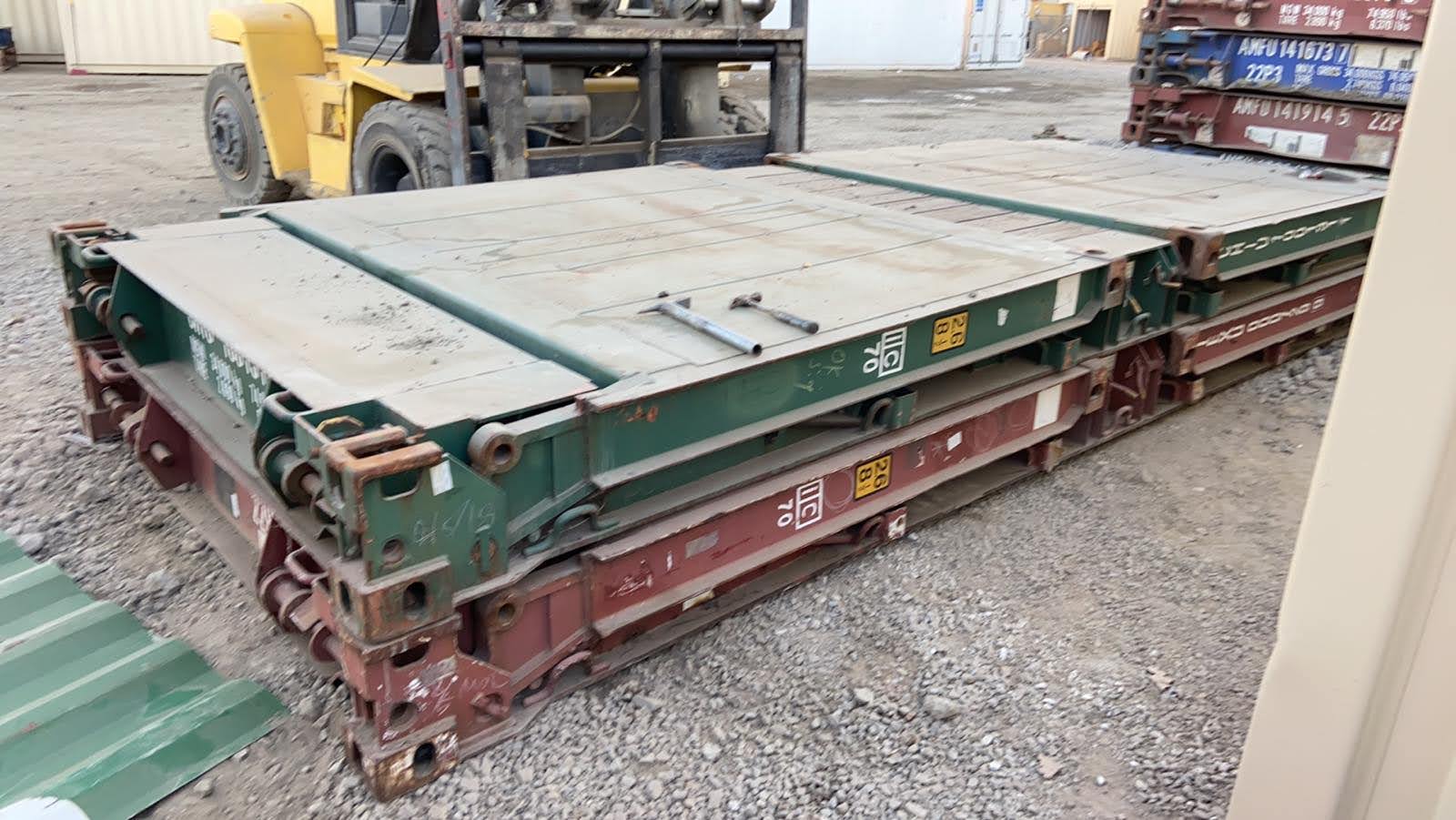

The ends can be either fixed or collapsible. The collapsible design allows empty containers to be stacked vertically, reducing storage space requirements.
Lashing rings are located in the side rails, floors, and corner posts to allow cargo to be secured and tied down.
The container is plated for shipping and stacking when loaded. Refer to the plate for full weight and stacking specifications.
The flooring is 28mm marine plywood. Marine plywood is manufactured with water-resistant adhesives and resists delamination in humid conditions.
Units are available with or without forklift pockets.
Technical Specifications
External Dimensions:
- Length: 6.06 m (approximately 20 ft)
- Width: 2.44 m (approximately 8 ft)
- Height: 2.59 m (approximately 8 ft 6 in)
Internal Dimensions:
- Length: 5.63 m
- Width: 2.23 m
Weight:
- Tare weight: 2,740 kg (approximately 6,041 lbs)
Construction:
- Container type: Flat rack
- Side walls: None
- Ends: Fixed or collapsible
- Flooring: 28mm marine plywood
- Lashing rings: In side rails, floors, and corner posts
- CSC plate: Yes (for shipping and stacking when loaded)
- Forklift pockets: Available (specify when ordering)
Compatibility and Intended Use
This flat rack container is intended for transport via ship, rail, or flatbed truck, or for ground-level placement. Typical applications include:
- Large, heavy, or unusual loads
- Oversized machinery and equipment
- Industrial and construction materials
- Cargo requiring side loading
- Reuse as bridges or platforms

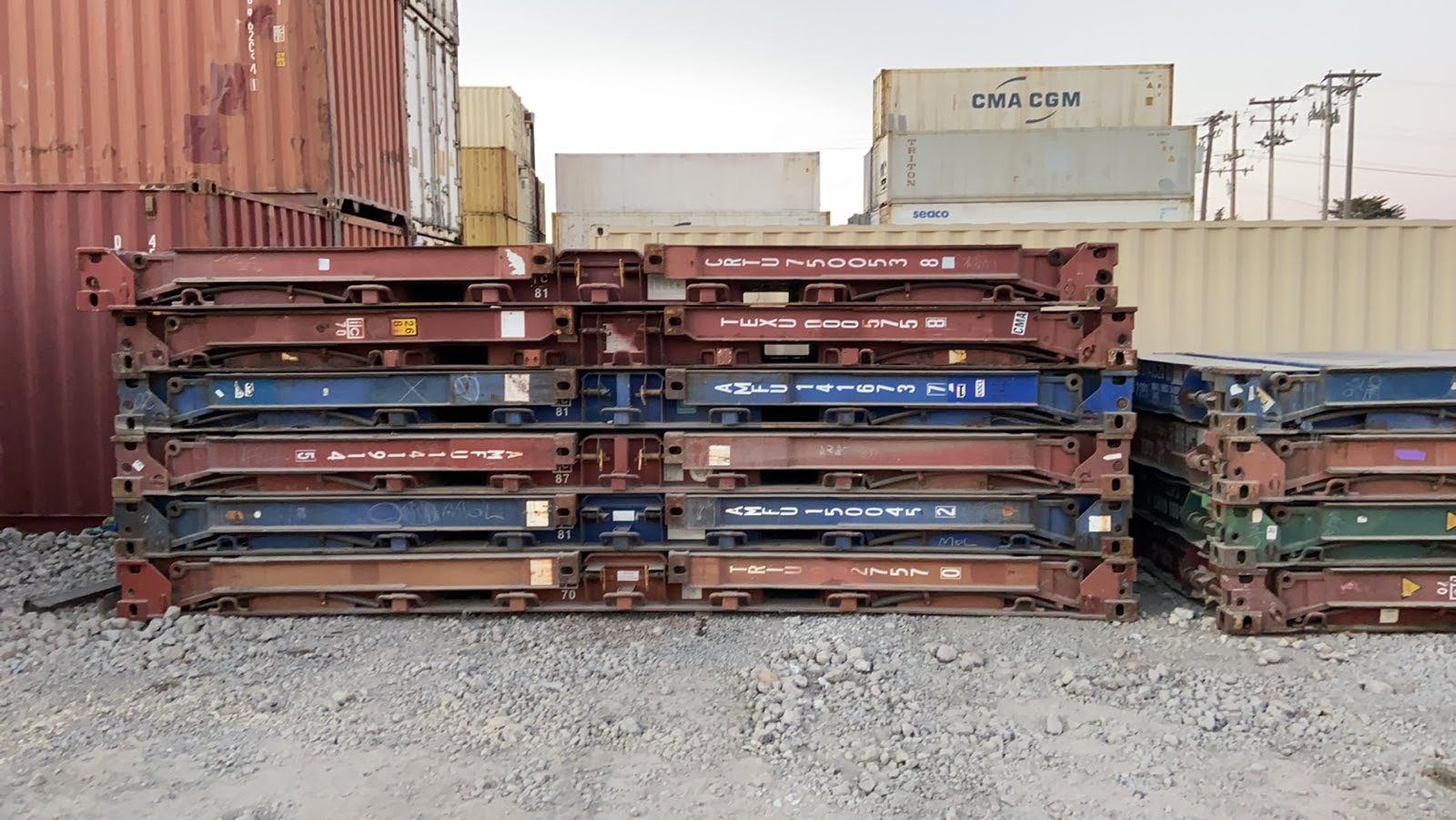

The collapsible end design allows empty containers to be stacked for efficient storage.
Package Includes
- 20 ft flat rack container
- Lashing rings (side rails, floors, corner posts)
- CSC plate
- 28mm marine ply flooring
