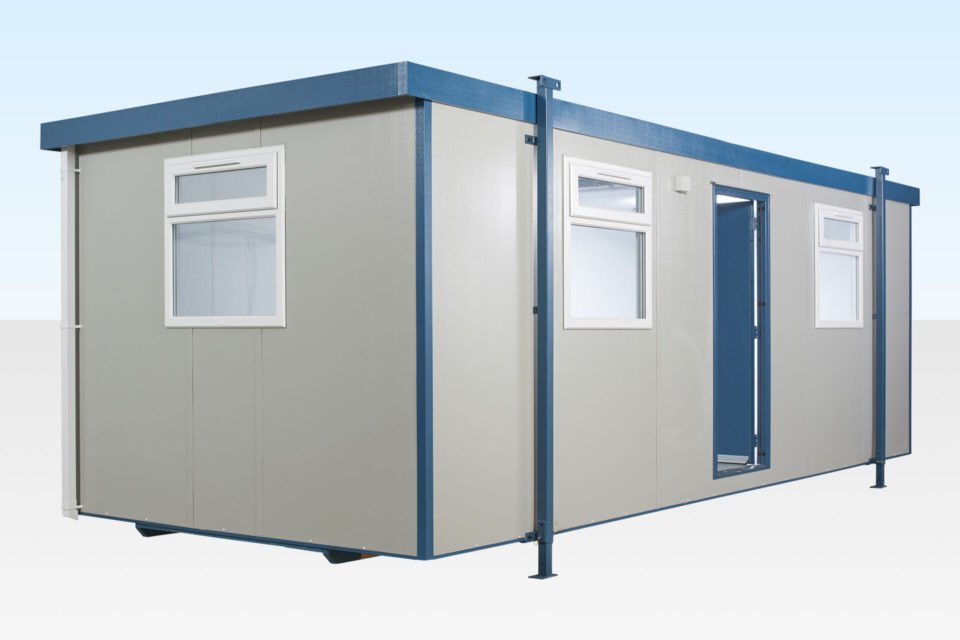

This 24ft x 10ft Jackleg cabin is a portable building designed for site office or temporary accommodation use. The cabin features a fixed open plan layout. A fitted canteen configuration is available as an alternative.
The exterior is finished in Goosewing Grey. The cabin includes jackleg supports that allow leveling on uneven ground.
The standard flooring is vinyl. Carpet flooring is available as an optional upgrade.
The cabin includes electric timed panel heaters for temperature regulation. The windows and doors are positioned in fixed locations.
The cabin is available in a standard configuration with limited options. Built-to-order cabins with additional options are available as an alternative.
Technical Specifications
External Dimensions:
-
Length: 7.32 m (approximately 24 ft)
-
Width (excluding jacks): 3.05 m (approximately 10 ft)
-
Width (including jacks): 3.18 m
-
Height: 2.75 m
Internal Dimensions:
-
Length: 7.12 m
-
Width: 2.85 m
-
Height: 2.3 m
Door:
-
Width: 0.8 m
-
Height: 1.99 m
Additional Specifications:
-
Exterior color: Goosewing Grey
-
Flooring: Vinyl (standard), carpet (optional)
-
Heating: Electric timed panel heaters
-
Window positions: Fixed
-
Door positions: Fixed
Compatibility and Intended Use
This Jackleg cabin is intended for ground-level placement on flat, prepared surfaces. Typical applications include:
-
Construction site offices
-
Worksite temporary accommodation
-
Portable canteen or break area
-
Site supervision quarters
-
Event or festival support buildings
The jackleg supports allow height adjustment for leveling on uneven terrain.
Package Includes
-
24ft x 10ft Jackleg cabin
-
Goosewing Grey exterior finish
-
Vinyl flooring
-
Electric timed panel heaters
-
Fixed windows and doors
-
Jackleg supports
