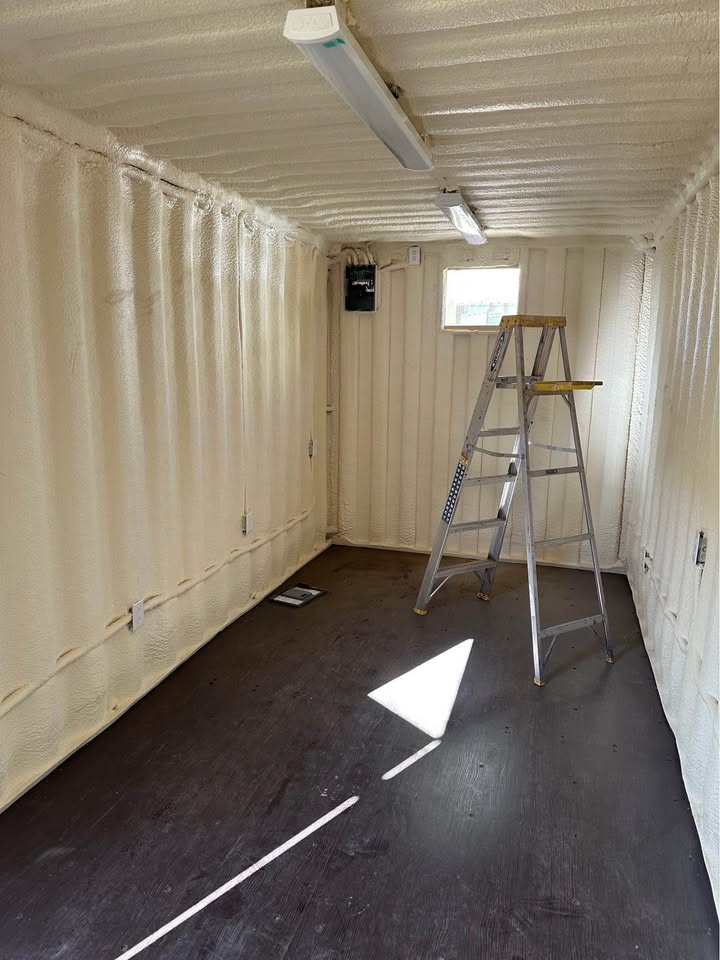

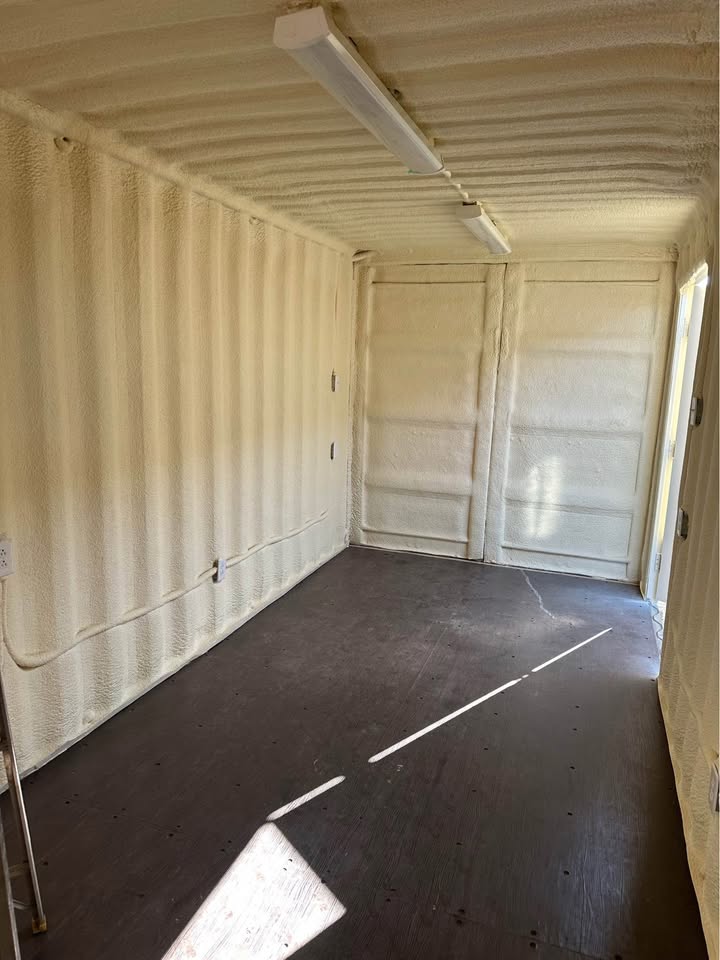

This container begins as a standard ISO-certified 20ft cargo unit and undergoes professional modification. Closed-cell spray foam insulation is applied to all interior surfaces at a minimum thickness of 1.5 inches, then covered with fire-retardant plywood paneling. The insulation reduces heat transfer and minimizes condensation on interior walls.
The electrical system includes a 4-circuit sub-panel rated for 120V AC, two duplex receptacles, one overhead LED light fixture, and an exterior weatherproof inlet box for connection to a generator or site power. All wiring is routed through conduit and meets standard electrical safety practices.

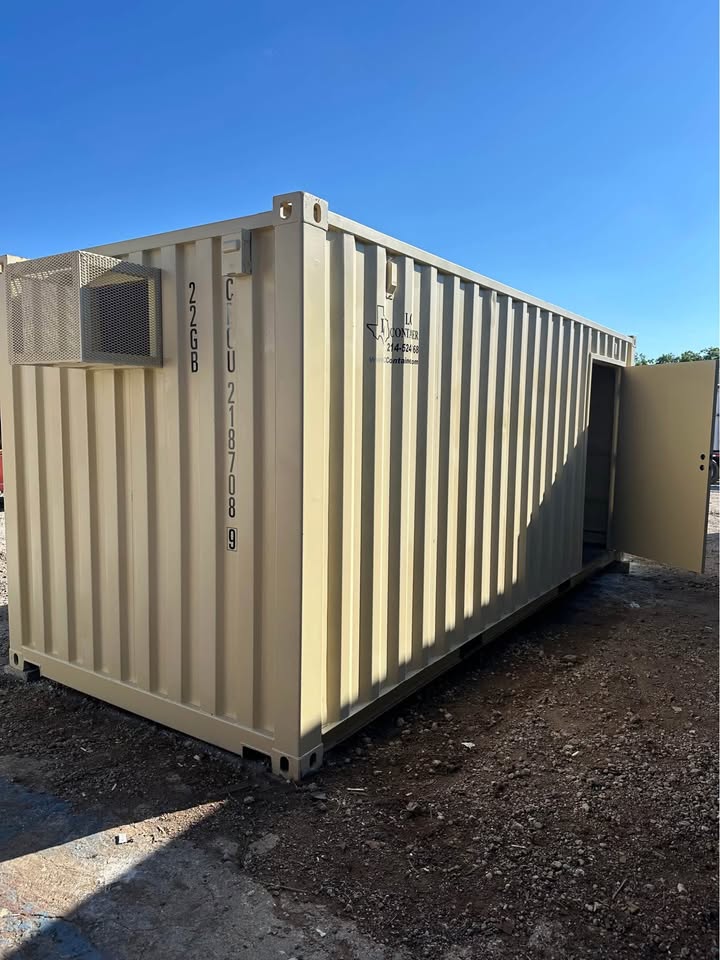

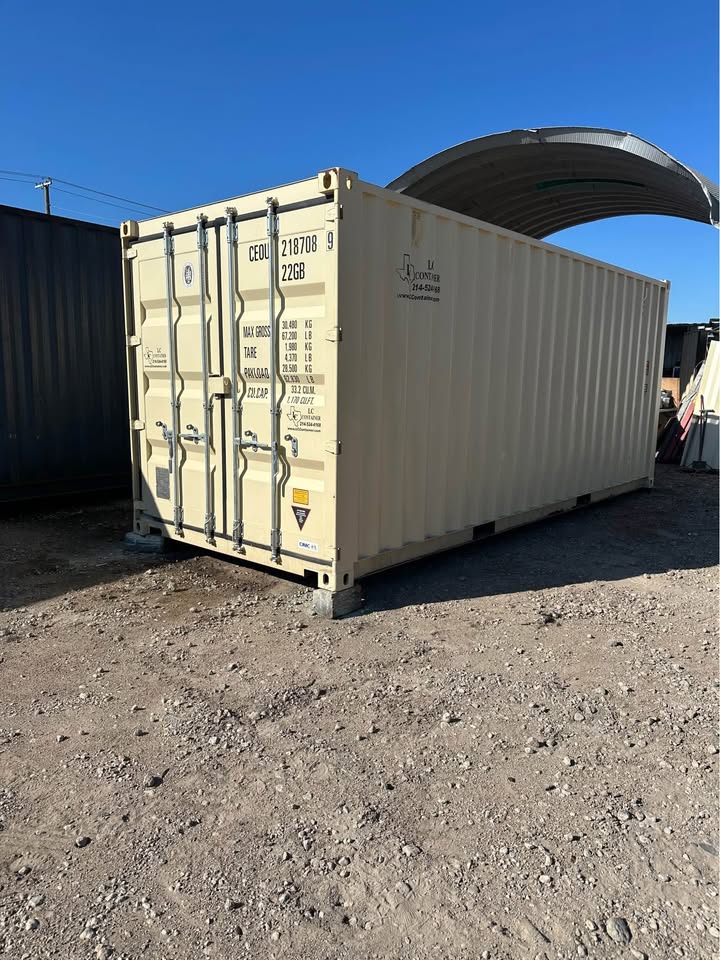

A steel-framed personnel door measuring 32 inches by 78 inches is installed on the sidewall. The door includes a three-point locking mechanism and weather seal. The original cargo doors at one end remain fully operational, with factory gaskets intact and locking bars functional.
All exterior weld points are ground smooth and coated with rust-inhibiting paint. The floor consists of 1.125-inch thick marine-grade plywood treated for moisture resistance.
Technical Specifications
- Container Type: ISO standard, single-trip or used Corten steel
- External Dimensions: 20 ft L x 8 ft W x 8 ft 6 in H
- Internal Dimensions (after insulation): approximately 18 ft 10 in L x 7 ft 4 in W x 7 ft 4 in H
- Cargo Door Opening: 7 ft 5 in W x 7 ft 3 in H
- Personnel Door Opening: 32 in W x 78 in H
- Insulation Type: Closed-cell spray foam, R-13 approximately
- Insulation Thickness: 1.5 inches
- Electrical System: 120V AC, 30 amp max input, 4-circuit sub-panel, 2 duplex outlets, 1 LED light
- Floor Material: 1.125 in marine-grade plywood
- Floor Load Capacity: 4,500 lbs per axle
- Tare Weight: approximately 5,400 lbs
- Steel Gauge: 14-gauge corrugated sidewalls
Intended Use
Suitable for on-site equipment storage, remote job site shelter, material storage, workshop enclosure, or hobby workspace. Designed for placement on compacted gravel, concrete pad, or level ground. Electrical system requires connection to an external power source by a licensed electrician. This container is not certified for residential habitation, commercial food storage, or medical use.
Package Includes
Two ventilation ports with insect screens
One modified 20ft shipping container
One pre-installed electrical sub-panel with outlets and LED light
One exterior power inlet box
One lockable personnel door with keys
One pair of operational cargo doors
