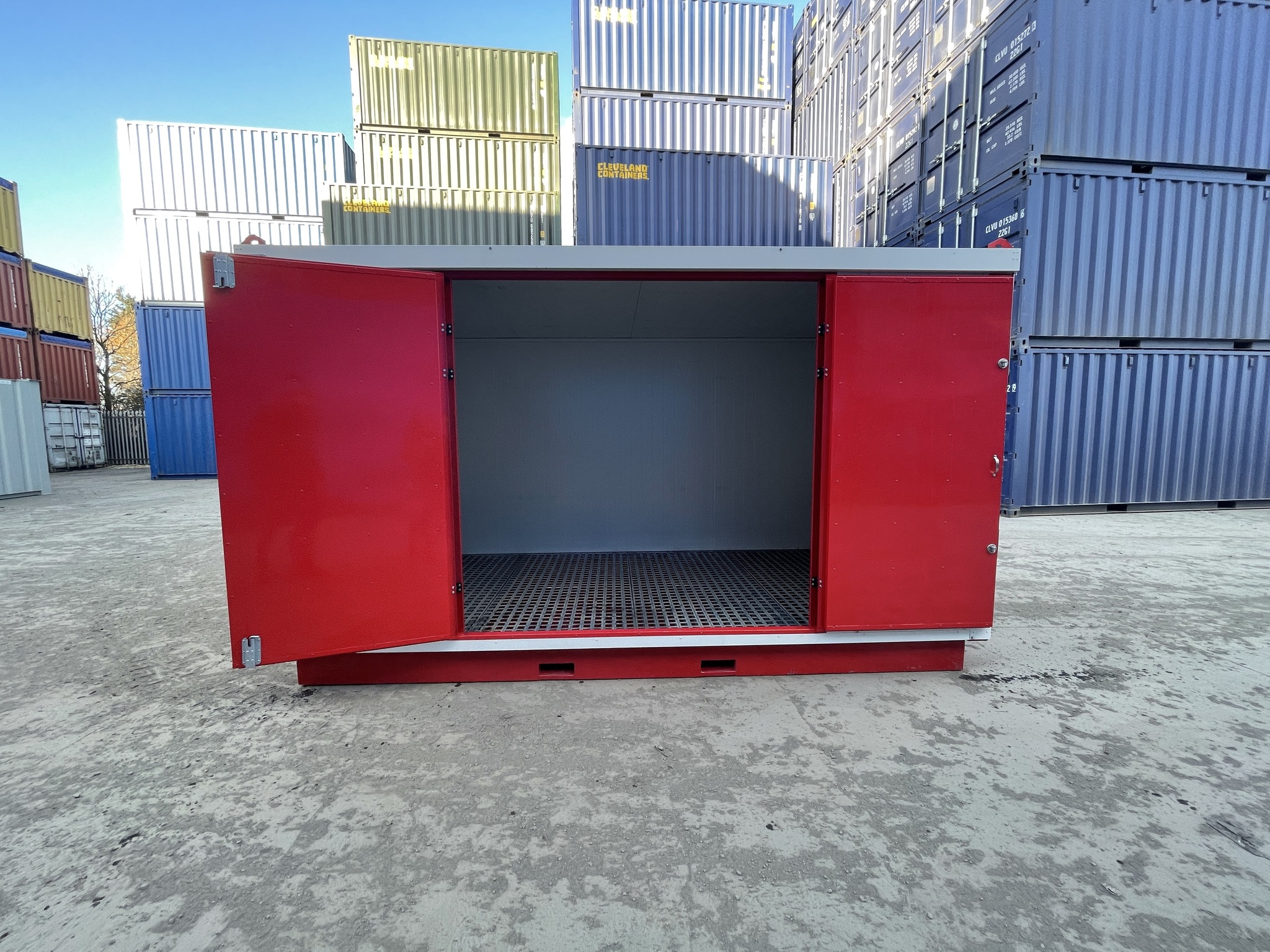

This storage unit is constructed from modular insulated panels shipped in flat pack form. Each panel consists of a steel outer skin, polyurethane foam core, and chemical-resistant inner lining. Panel thickness is 50mm for walls and floor, with 40mm for the ceiling.
The unit is designed to meet COSHH storage requirements for hazardous substances including chemicals, solvents, paints, and industrial fluids. A spill containment sump is integrated into the floor panel, capable of containing leaks from stored containers. Ventilation ports are positioned near the top and bottom of the unit to allow passive air circulation.
The access door measures 800mm in width by 1800mm in height and includes a three-point locking mechanism with a hasp for padlock application. Door hinges are welded and sealed. Assembly requires basic tools and two persons. All panel connections use bolt-together hardware with included gaskets for weather resistance.
The base includes integrated forklift pockets for positioning after assembly. The unit is designed for ground-level placement on a level, prepared concrete surface.
Technical Specifications
- External Length: 4m
- External Width: 2m
- External Height: 2.2m
- Internal Length: 3.9m
- Internal Width: 1.9m
- Internal Height: 2.1m
- Panel Thickness: 50mm (walls and floor), 40mm (ceiling)
- Panel Material: Steel outer skin, polyurethane foam core, chemical-resistant inner lining
- Door Opening: 800mm width x 1800mm height
- Door Locking: Three-point mechanism with hasp for padlock
- Spill Containment Sump: Integrated, 110% of largest stored container volume
- Ventilation: Two passive ports (low and high)
- Forklift Pockets: 4 (base locations)
- Assembly Required: Yes, flat pack
- Tare Weight: approximately 950 kg
Intended Use
Suitable for secure on-site storage of hazardous substances including chemicals, solvents, paints, oils, and industrial fluids. Designed for placement on a level concrete pad. Complies with COSHH storage guidelines when used as directed. Not intended for storage of explosives, radioactive materials, or compressed gases without additional modification. Ventilation ports must remain unobstructed during use.
Package Includes
Ventilation port coversMake your storage compliant, safe, and secure — before stock runs out!
Set of insulated wall, floor, and ceiling panels
One lockable access door with three-point locking mechanism
Bolt-together hardware with gaskets
Integrated spill containment sump
Assembly instructions
