This 20ft shipping container is modified for multi-compartment storage applications. The container begins as a standard ISO-certified unit and undergoes modification including sidewall door cutouts, hinged door installation, and interior partition tracks.

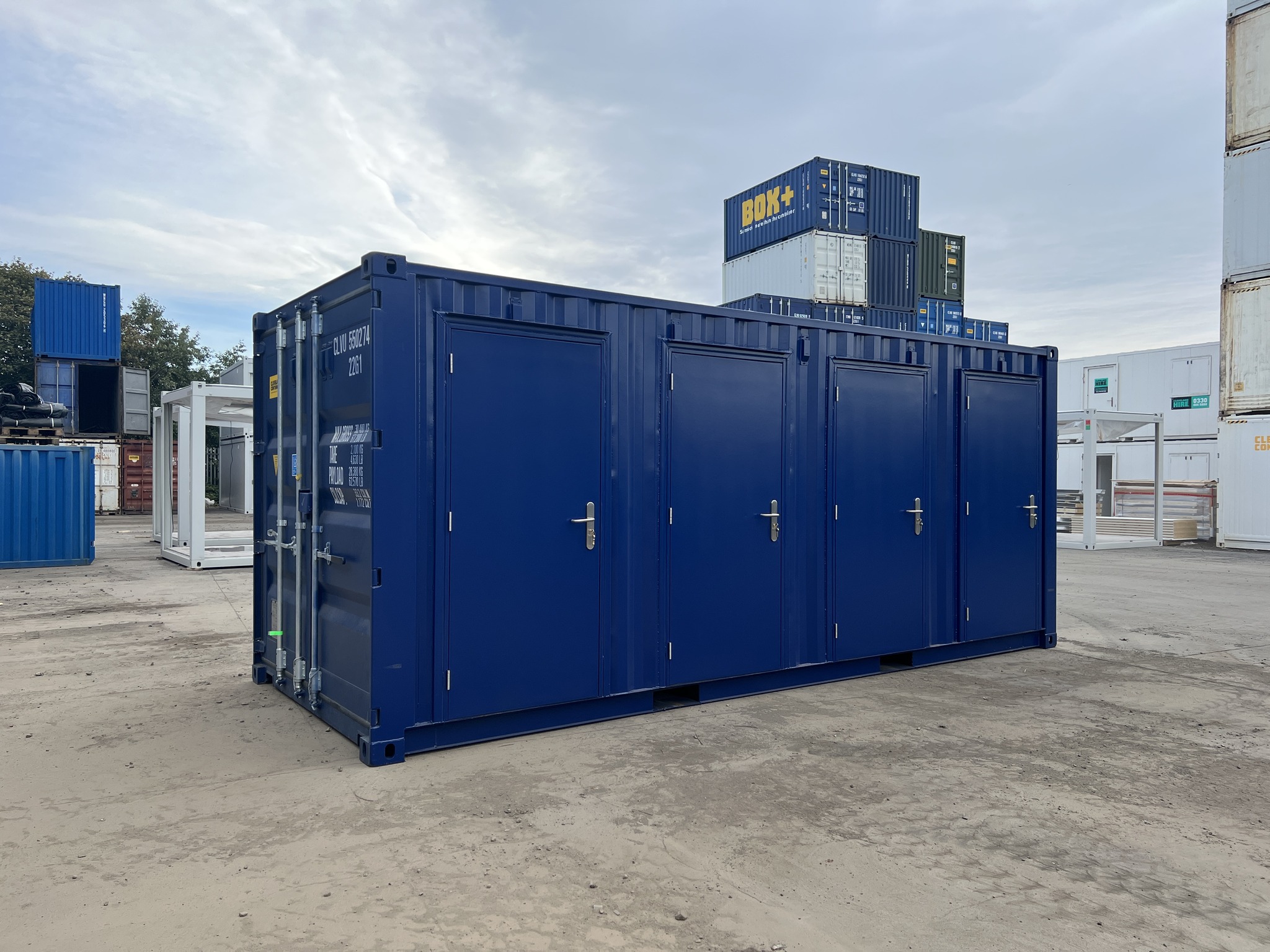

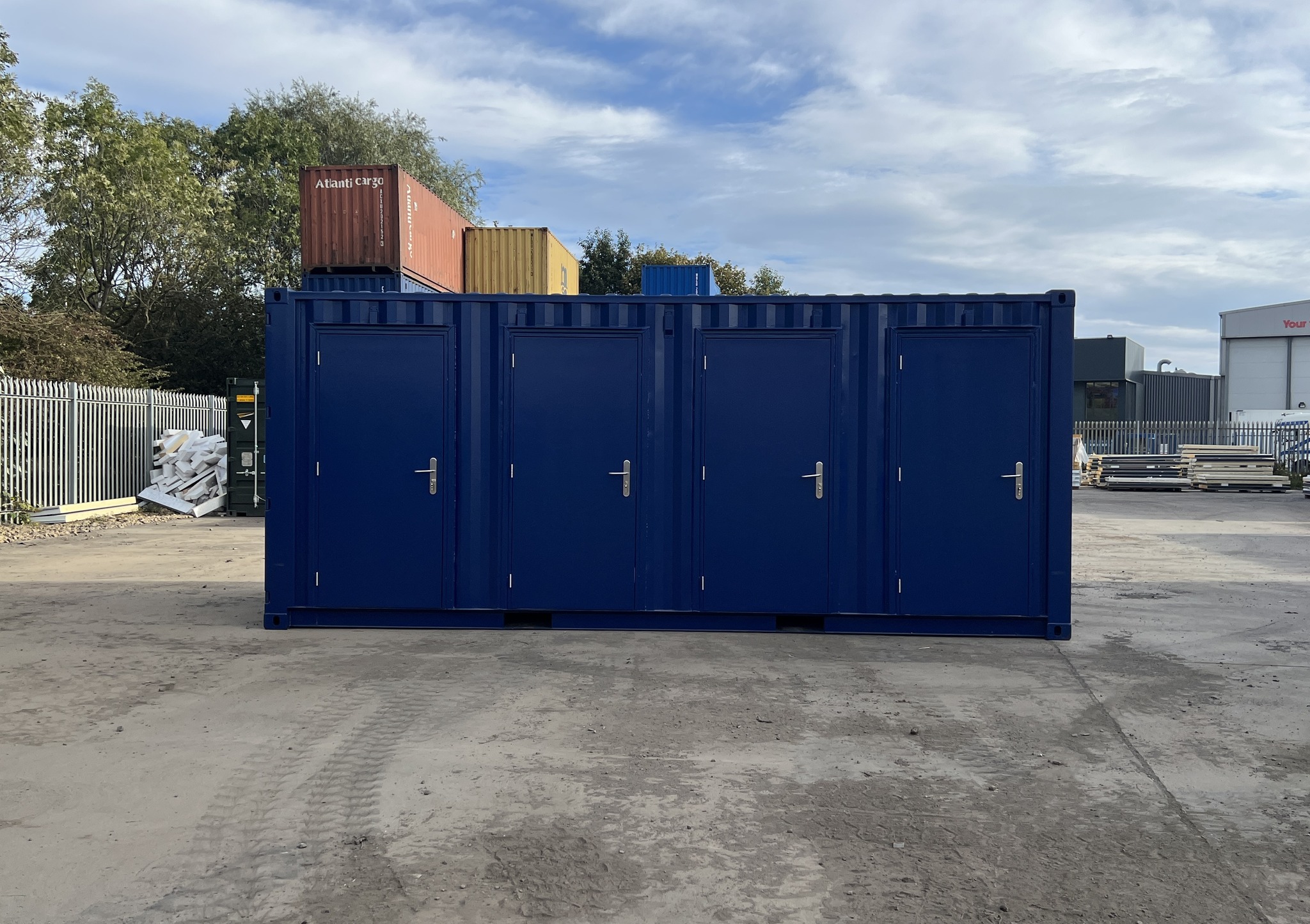

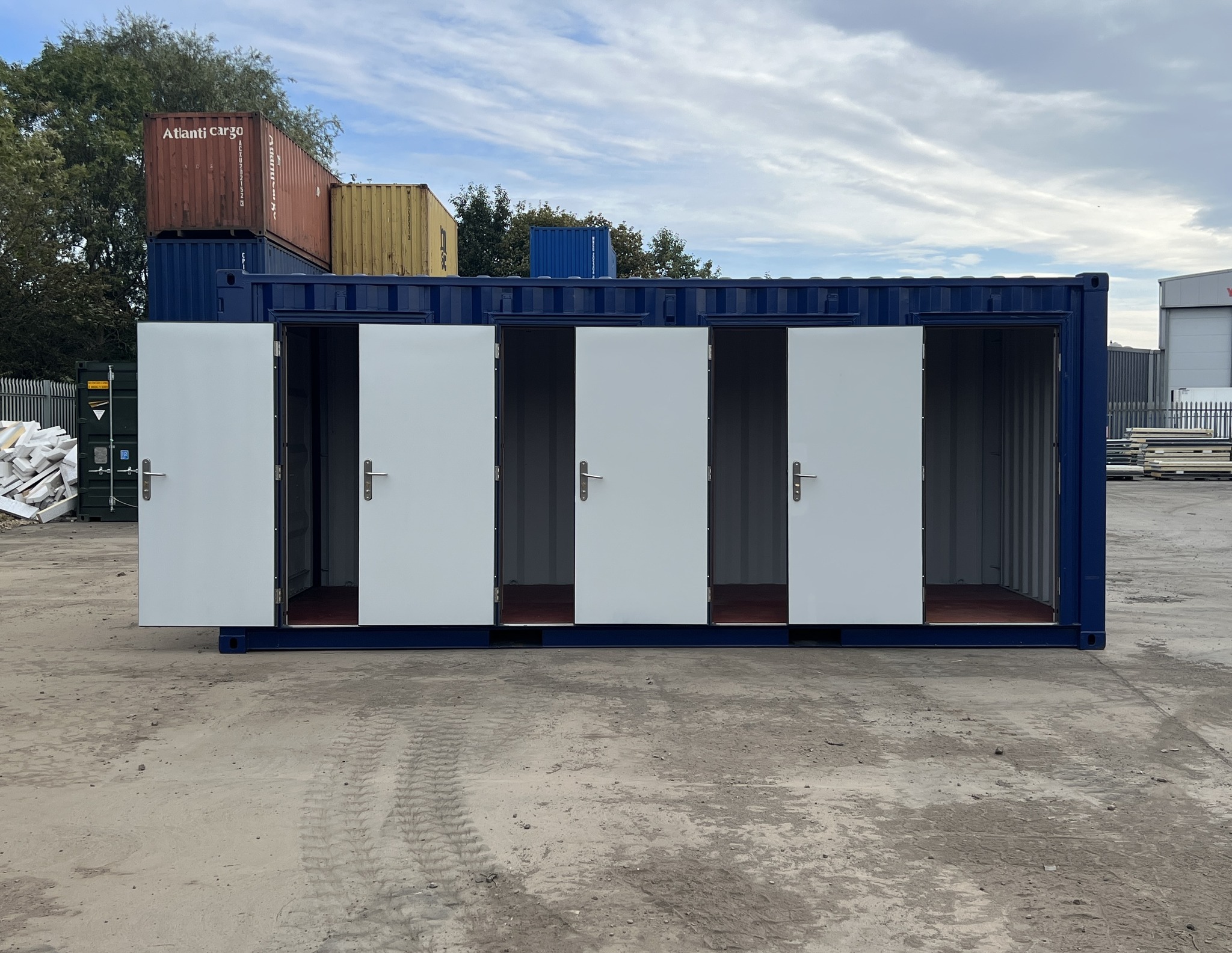

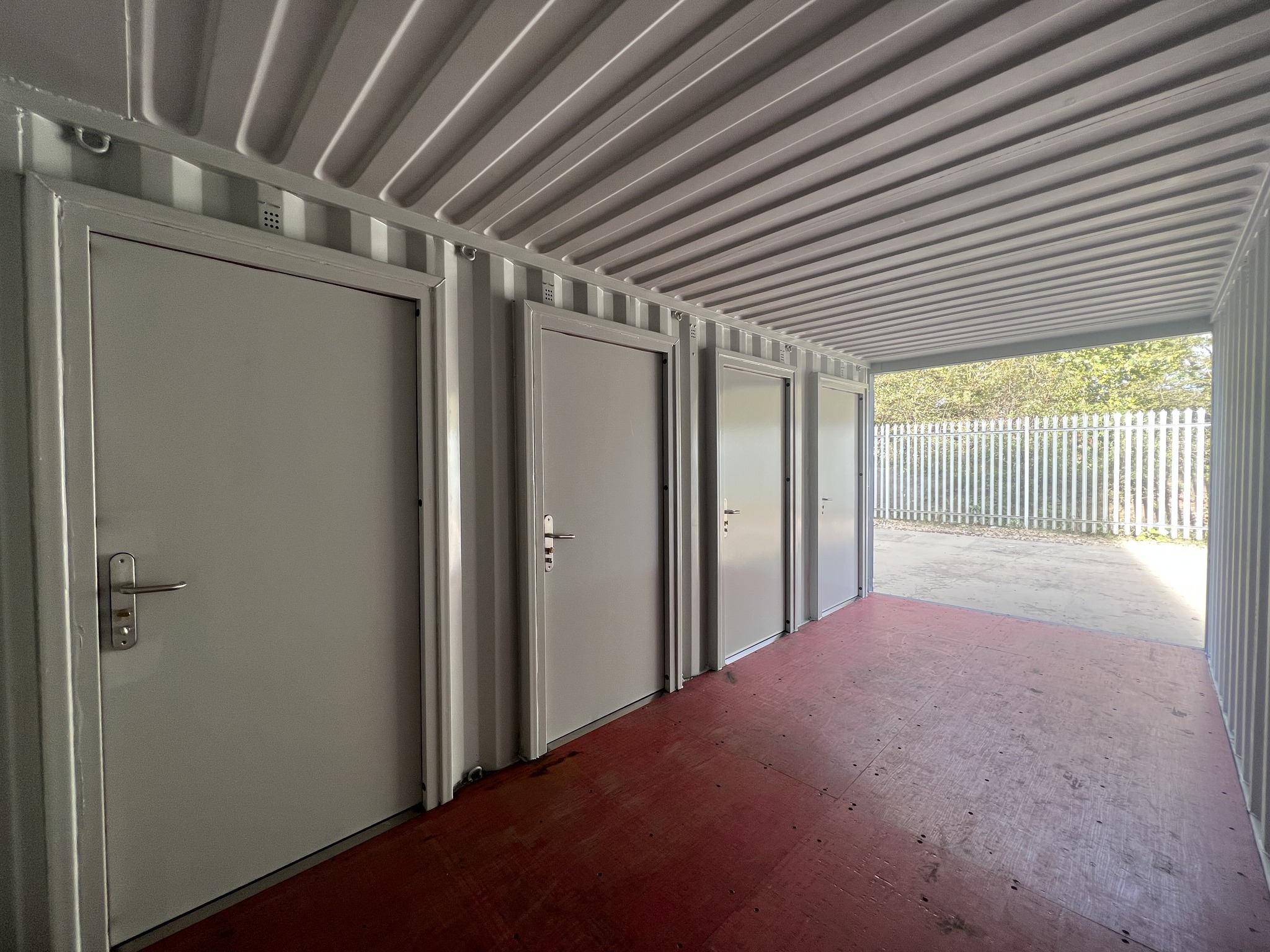

Four hinged steel doors are installed along one sidewall. Each door operates on welded steel hinges and swings outward. Each door opening measures approximately 4ft in width by 6ft in height. Each hinged door includes a locking mechanism with a hasp for padlock application.

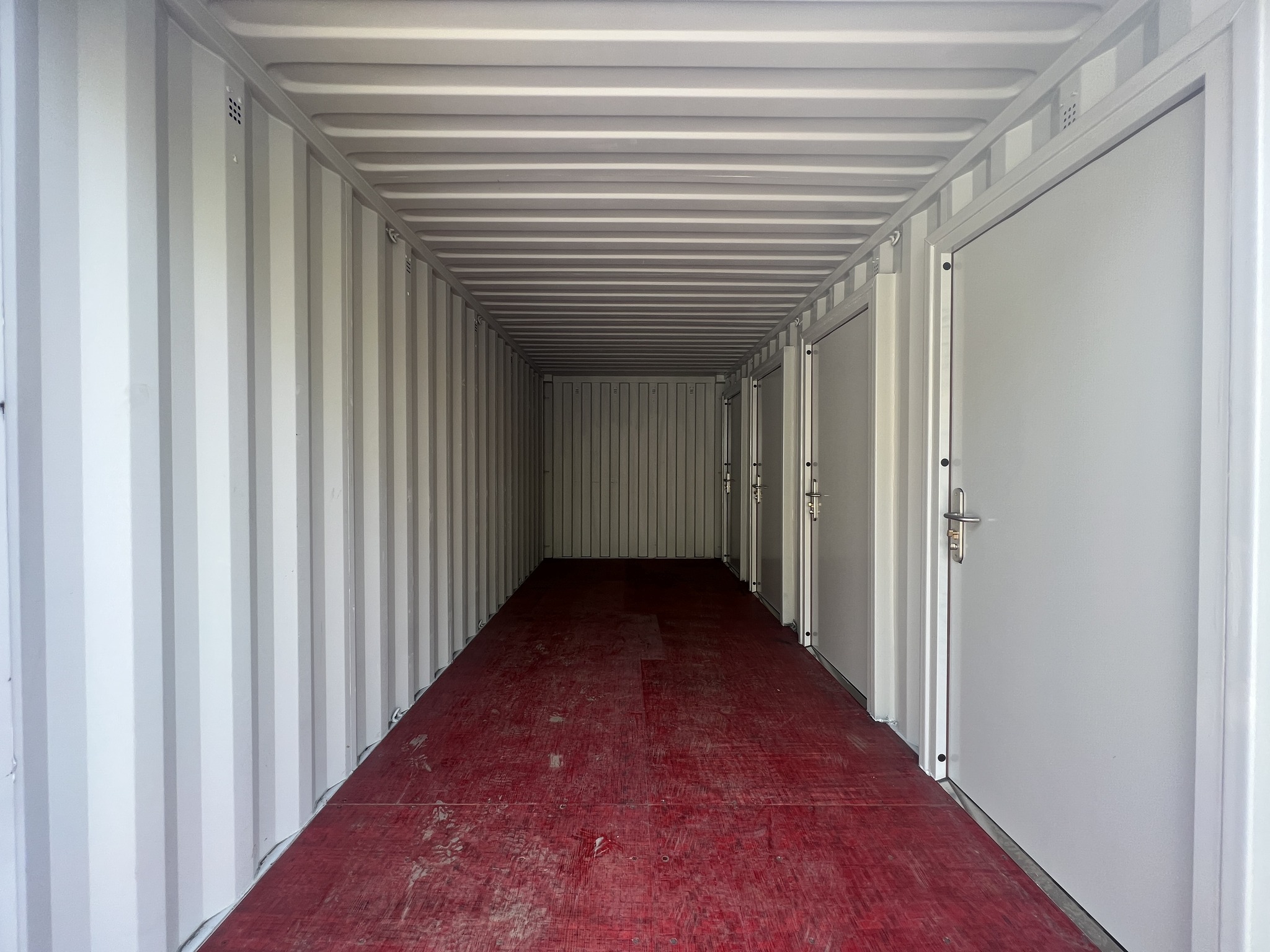

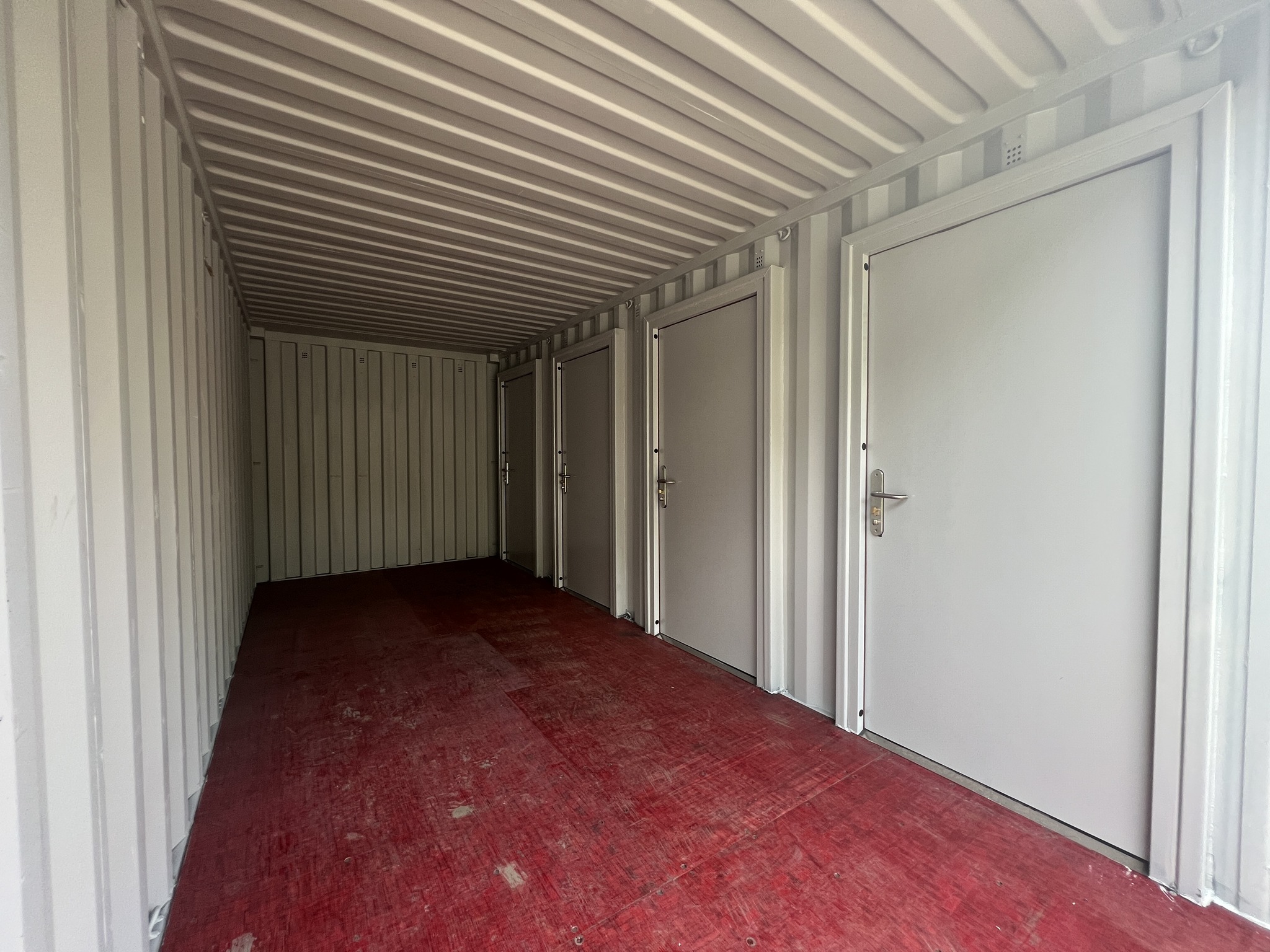

Movable interior partitions are installed on tracks. The partitions can be positioned to create two, three, or four separate storage compartments. The partitions are constructed from steel and include locking provisions at each endpoint.
The original cargo doors at one end remain fully operational, measuring 7ft 5in in width by 7ft 3in in height. Door locking bars operate with a standard locking mechanism.
The exterior receives a blue industrial coating applied over prepared Corten steel surfaces. The container body is constructed from 14-gauge Corten steel with corrugated sidewalls. As a modified unit, all cut edges and weld points are finished with rust-inhibiting coating.
The floor consists of 1.125-inch thick marine-grade plywood treated for moisture resistance. Four ventilation ports with insect screens are installed to reduce condensation buildup. Forklift pockets on the base allow repositioning using appropriate equipment.
Technical Specifications
- Container Type: ISO standard, Corten steel, modified
- External Length: 20ft
- External Width: 8ft
- External Height: 8ft 6in
- Internal Length: approximately 19ft 4in
- Internal Width: 7ft 8in
- Internal Height: 7ft 9in
- Exterior Finish: Blue industrial coating
- Number of Side Hinged Doors: 4
- Each Hinged Door Width: 4ft
- Each Hinged Door Height: 6ft
- Each Hinged Door Type: Steel, outward swinging, with padlock hasp
- Interior Partitions: Movable, steel construction
- Compartment Configurations: 2, 3, or 4 compartments
- Cargo Door Opening Width: 7ft 5in
- Cargo Door Opening Height: 7ft 3in
- Tare Weight: approximately 5,800 lbs
- Floor Load Capacity: 4,500 lbs per axle
- Steel Gauge: 14-gauge corrugated sidewalls
- Floor Material: 1.125in marine-grade plywood
- Ventilation: 4 ports with insect screens
- Forklift Pockets: 4 (end base locations)
Intended Use
Suitable for self-storage facilities, commercial property storage, multi-tenant access applications, or equipment rental sites requiring compartmentalized storage. Designed for placement on compacted gravel, concrete pad, or level ground. Not certified for residential habitation, commercial food storage, or medical use.
Package Includes
- One modified 20ft shipping container with blue exterior
- Four hinged steel doors with locking hasps
- Movable interior partition set with tracks
- One pair of cargo doors with locking bars
- Four ventilation ports with insect screens
- Treated wood flooring
