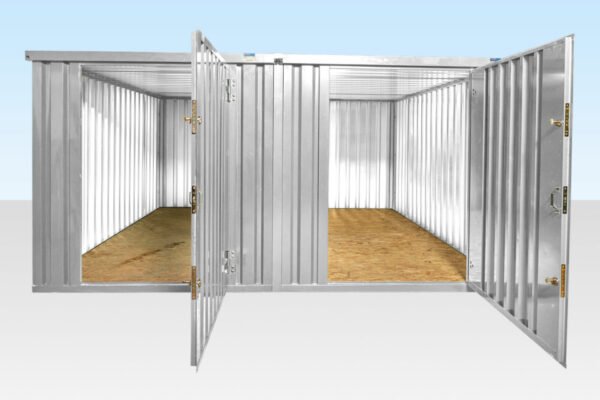

This side linked flat pack container bundle is designed for creating large open storage spaces. The galvanised flat pack containers are linked with a matching galvanised linking kit.
The side linked set-up includes multiple doors. Each additional unit added provides an extra set of doors.
Linked flat pack units can be joined with doors at the same end or opposite ends, allowing configuration based on site requirements.
Flat pack containers can only be joined in one direction (side by side or end on end) within the same structure.
The individual components can be moved by hand and erected in challenging positions, including behind or within buildings.
Additional units can be joined if required (additional linking kits and stores must be ordered separately).
Technical Specifications
External Dimensions:
-
Length: 3.88 m
-
Width: 4.37 m
-
Height: 2.09 m
Internal Dimensions:
-
Length: 3.73 m
-
Width: 4.07 m
-
Height: 1.95 m
Door:
-
Width: 1.25 m
-
Height: 1.88 m
Weight:
-
Flat packed weight: 842 kg
-
Heaviest component (demounted): 153 kg
Construction:
-
Material: Galvanised steel
-
Configuration: Side linked
-
Expandable: Yes (with additional units and linking kits)
Compatibility and Intended Use
This side linked flat pack container bundle is intended for ground-level placement on flat, load-bearing surfaces. Typical applications include:
-
Storage of goods and equipment
-
Grounds maintenance storage
-
Sports equipment storage
-
Community centre and village hall storage
-
Locations where crane delivery is not possible
The man-portable design allows installation in areas with restricted vehicle access, including rail sidings, platforms, sports fields, and remote locations.
Package Includes
-
Two 4m flat pack powder coated stores
-
One side by side linking kit
-
All components for assembly
