This three tier container racking system is designed for installation inside shipping containers. The single bay kit is suitable for 10ft containers and can also be used in 20ft, 30ft, and 40ft containers.
The racking comprises two pre-assembled end frames connected by two beams per shelf. The end frames are 2m high and 600mm wide. The beams slot into the end frames and include safety clips for secure attachment.
Shelf level heights can be adjusted in 50mm increments, allowing customization for different storage requirements.
All steel components are powder coated in blue and orange. The coating provides a finish that resists scratching.
Each shelf includes a 25mm chipboard shelf board. The capacity is 550kg per shelf.

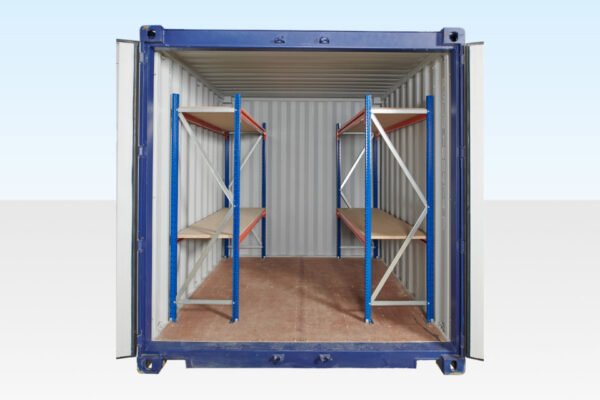

It is possible to install racking on both sides of the container. However, there is not enough room to install racking on the end wall.
This single bay racking kit is for one side. Two kits are required to fit both sides.
Maximum Bays Per Container Side
| Container Size | Maximum Bays Per Side |
|---|---|
| 10 ft | 1 |
| 20 ft | 2 |
| 40 ft | 5 |
Technical Specifications
-
Configuration: Three tier
-
Bay type: Single bay
-
Bay length: 2250 mm
-
End frame height: 2 m
-
End frame width: 600 mm
-
Shelf material: 25mm chipboard
-
Capacity per shelf: 550 kg
-
Height adjustment: 50 mm increments
-
Material: Steel
-
Finish: Powder coated (blue and orange)
-
Safety features: Safety clips on beams
-
Assembly: Pre-assembled end frames, slot-in beams
Compatibility and Intended Use
This racking system is intended for installation inside shipping containers of the following sizes:
-
10 ft containers (maximum 1 bay per side)
-
20 ft containers (maximum 2 bays per side)
-
30 ft containers
-
40 ft containers (maximum 5 bays per side)
For racking on both sides of a container, two kits are required. Racking cannot be installed on the end wall.
Package Includes
-
Two pre-assembled end frames (2m high x 600mm wide)
-
Beams with safety clips (2 per shelf)
-
25mm chipboard shelves
-
Powder coated steel components (blue and orange)
