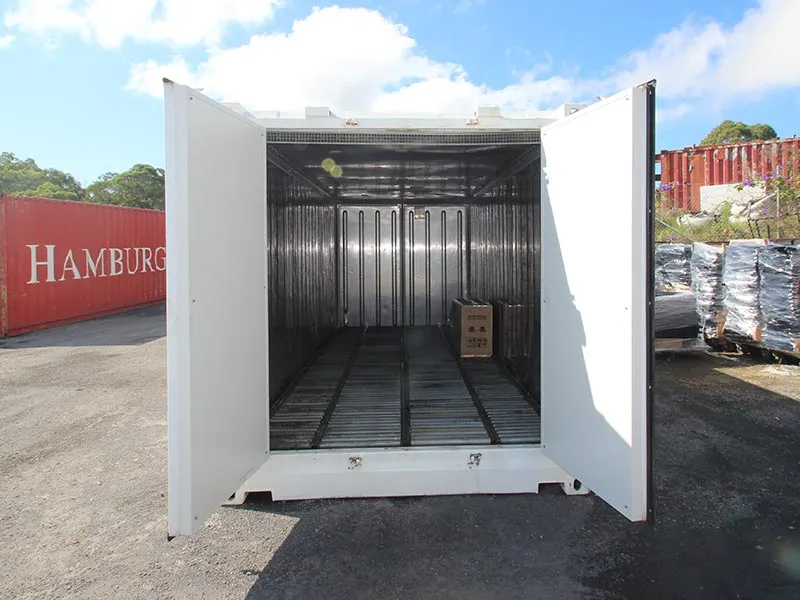

This insulated shipping container relies on insulation properties rather than mechanical refrigeration to maintain interior temperature. The container is suitable for pre-cooled cargo on short trips, goods that require temperature stability without refrigeration, and storage applications.

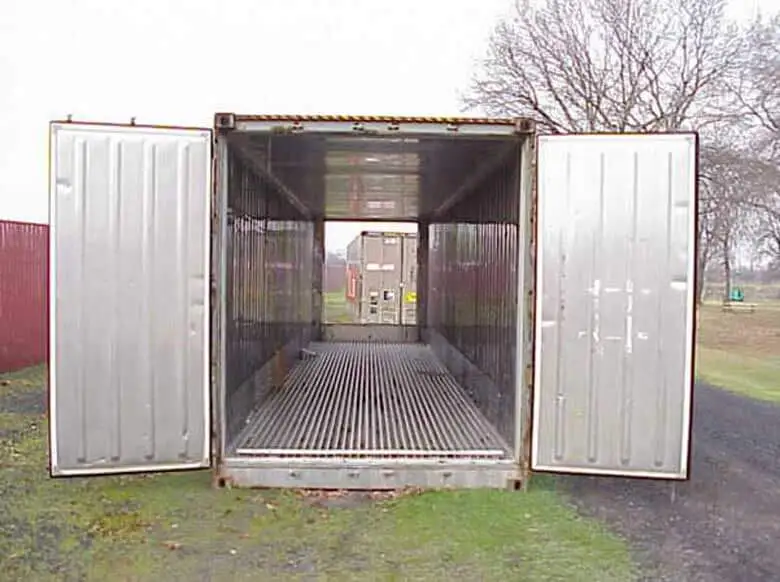

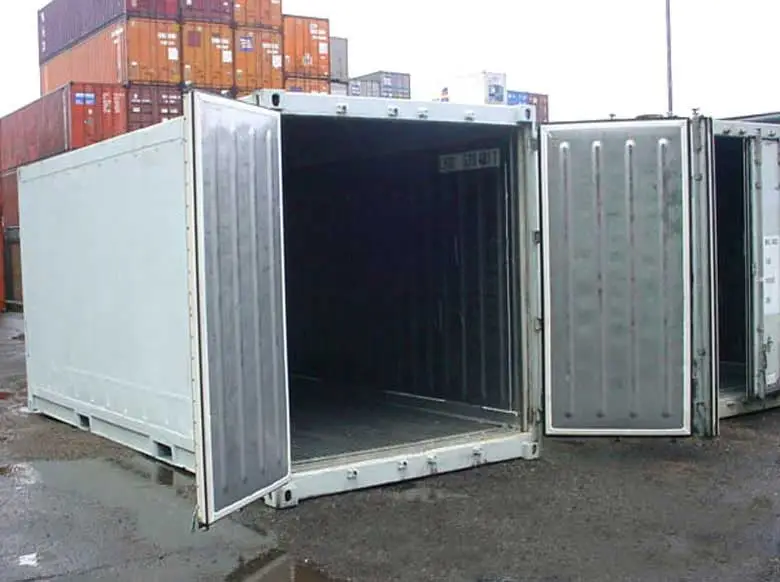

Two configurations are available. Non-operational refrigerated (NOR) containers are decommissioned refrigerated containers. The powered cooling equipment is no longer operational, but the heavy-duty insulation remains intact. Purpose-built insulated containers are designed specifically for goods that require steady temperatures without refrigeration. A standard container can be insulated with 50 mm Bondor panelling to regulate external temperatures.
The container includes solid steel structural components and standard double doors with full 270-degree opening. Flooring is stainless steel for NOR containers or timber for purpose-built units. A security lock box can be installed as an optional accessory.
The container can be used for transport or stationary storage. It is also suitable for container homes, offices, and sheds when insulation is required.
Technical Specifications
| Specification | 20 ft Insulated | 40 ft Insulated |
|---|---|---|
| Inside cubic capacity | 28.3 m³ | 57.8 m³ |
| Max gross weight | 22,111 kg | 26,120 kg |
| Tare weight | 3,290 kg | 4,360 kg |
External Dimensions:
| Dimension | 20 ft | 40 ft |
|---|---|---|
| Length | 6.06 m (20 ft) | 12.19 m (40 ft) |
| Width | 2.44 m (8 ft) | 2.44 m (8 ft) |
| Height | 2.90 m (9 ft 6 in) | 2.90 m (9 ft 6 in) |
Internal Dimensions:
| Dimension | 20 ft | 40 ft |
|---|---|---|
| Length | 5.43 m | 11.49 m |
| Width | 2.28 m | 2.27 m |
| Height | 2.26 m | 2.20 m |
Door Opening:
- Width: 2.34 m
- Height: 2.58 m
Additional Specifications:
- NOR flooring: Stainless steel
- Purpose-built flooring: Timber
- Door opening: 270 degrees
- Door type: Standard double doors
- Lock box: Optional
Available Configurations
| Configuration | Description |
|---|---|
| Non-operational refrigerated (NOR) | Decommissioned reefer with insulation intact, no cooling equipment |
| Purpose-built insulated | Standard container insulated with 50 mm panelling |
Available Customization Options
- Security lock box
- Ventilation
- Windows
- Paint and signage
- Ramps
- Shelving
- Workbenches
- Electrical and phone fit-outs
- Lighting
- Air conditioning
- Kitchenettes
- Bathrooms
Compatibility and Intended Use
This insulated container is intended for transport via ship, rail, or flatbed truck, as well as ground-level placement for stationary storage. Typical applications include:
- Short-distance transport of pre-cooled cargo
- Storage of wine, books, documents, fabric items, and leather goods
- Long-term storage requiring temperature stability
- Container homes and accommodation
- Site offices and lunchrooms
- First aid rooms and switch rooms
- Sheds and workshops
The portable design allows relocation between sites as needed.
Package Includes
- Insulated shipping container (20 ft or 40 ft – specify when ordering)
- NOR or purpose-built configuration (specify when ordering)
- Solid steel structural components
- Standard double doors with 270-degree opening
- Flooring as per configuration (stainless steel for NOR, timber for purpose-built)
